L6562AN - STMicroelectronics

Description: L6562AN, Power Factor Controller, 22.5 V, 8-Pin, PDIP

Download L6562AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

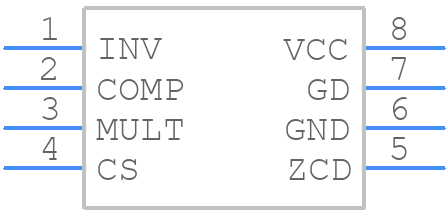

L6562AN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6562AN - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom
3D Models
L6562AN - STMicroelectronics - 3D model - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom

L6562AN Details

  • Manufacturer Part Number:

    L6562AN

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN CURRENT MODE

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    22.5 V

  • Input Voltage-Min:

    10.5 V

  • Input Voltage-Nom:

    11 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6562AN Frequently Asked Questions (FAQs)

  • The L6562AN can handle input voltages up to 40V, but it's recommended to keep it below 35V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 10nF to 22nF, but it may need to be adjusted based on the specific application requirements and the value of the high-side MOSFET.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a low-ESR output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VCC pin and GND. Additionally, adjust the compensation components (R3, R4, C3) according to the application requirements.
  • The L6562AN can deliver up to 3A of output current, but it's recommended to derate the output current based on the ambient temperature and the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6562AN Overview

Use the download button to access the L6562AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6562, or try a keyword search, such as Switching Regulator or Controllers
