Part Image

L6562N - STMicroelectronics

Description: L6562N, Power Factor Controller, 22 V, 8-Pin, PDIP

Download L6562N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

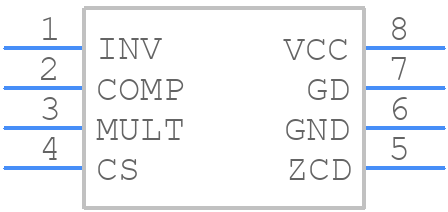

Symbol
L6562N - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6562N - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom
3D Models
L6562N - STMicroelectronics - 3D model - Dual-In-Line Packages - 8 PINS - PLASTIC DIP
click to zoom

L6562N Details

  • Manufacturer Part Number:

    L6562N

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1980-01-04

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    10.3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    BCDMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6562N Frequently Asked Questions (FAQs)

  • The L6562N can handle input voltages up to 30V, but it's recommended to keep it below 25V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor selection guide provided in the datasheet or application notes. You can also use online inductor selection tools or consult with an experienced engineer.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 10nF to 22nF, but it may need to be adjusted based on the specific application and layout.
  • To ensure stability, follow the layout guidelines in the datasheet, keep the power traces short and wide, and use a low-ESR output capacitor. Also, make sure to decouple the input voltage with a capacitor and use a ferrite bead or a resistor in series with the input voltage to reduce noise.
  • The L6562N can deliver up to 3A of output current, but it's recommended to derate the output current based on the ambient temperature and the thermal design of the PCB.
