L6569A - STMicroelectronics

Description: L6569A, Dual MOSFET Power Driver 0.275A Half Bridge, 10 → 16.6 V, 8-Pin MiniPDIP

Download L6569A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

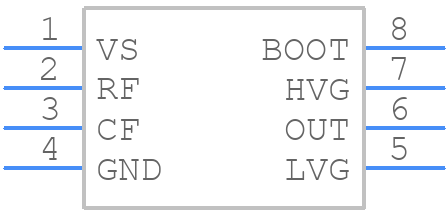

Symbol
L6569A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6569A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Minidip
click to zoom
3D Models
L6569A - STMicroelectronics - 3D model - Dual-In-Line Packages - Minidip
click to zoom

L6569A Details

  • Manufacturer Part Number:

    L6569A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    MINI, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.92 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    0.275 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    16.6 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    500 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

L6569A Frequently Asked Questions (FAQs)

  • The L6569A can handle input voltages up to 40V, but it's recommended to keep it below 35V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet, and then fine-tune the value based on your specific application requirements.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 10nF to 22nF, but it may need to be adjusted based on the specific application requirements and the value of the high-side MOSFET.
  • To ensure CCM operation, the inductor value should be chosen such that the inductor current ripple is less than 30% of the output current. Additionally, the output capacitor value should be sufficient to filter out the ripple voltage.
  • The L6569A can deliver up to 5A of output current, but this depends on the input voltage, output voltage, and thermal considerations. It's recommended to check the thermal derating curves in the datasheet to ensure reliable operation.
