L6571BD013TR - STMicroelectronics

Description: High voltage half bridge driver with oscillator

Download L6571BD013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

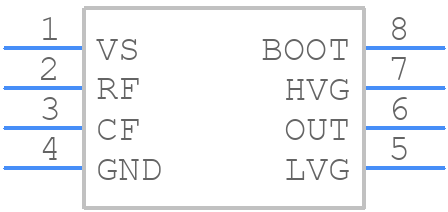

Symbol
L6571BD013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6571BD013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ...SO-8 mechanical data888
click to zoom
3D Models
L6571BD013TR - STMicroelectronics - 3D model - Small Outline Packages - ...SO-8 mechanical data888
click to zoom

L6571BD013TR Details

  • Manufacturer Part Number:

    L6571BD013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.75

  • Additional Feature:

    FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.275 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Max:

    16.6 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    500 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L6571BD013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L6571BD013TR involves keeping the high-frequency switching nodes (e.g., drain and source of the power MOSFET) as small as possible, using a solid ground plane, and minimizing the length of the traces connecting the IC to the power components. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper thermal management, make sure to provide a sufficient heat sink for the L6571BD013TR, especially in high-power applications. A thermal interface material (TIM) can be used to improve heat transfer between the IC and the heat sink. Additionally, ensure good airflow around the heat sink and avoid blocking airflow with other components or obstacles.
  • The reliability of the L6571BD013TR is heavily dependent on the quality and reliability of the external components, particularly the power MOSFET, the input and output capacitors, and the resistors. Choose components with high reliability and suitable ratings for the application.
  • To troubleshoot issues with the L6571BD013TR, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the voltage and current waveforms at the input and output of the converter. Check for signs of oscillation, such as ringing or high-frequency noise, and adjust the component values or layout as needed.
  • When using the L6571BD013TR, it's essential to implement proper EMI filtering to meet regulatory requirements and ensure reliable operation. Use a common-mode choke and a differential-mode filter to reduce conducted emissions. Additionally, ensure that the PCB layout is designed to minimize radiated emissions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6571BD013TR Overview

Use the download button to access the L6571BD013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6571, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
