L6599AFD - STMicroelectronics

Description: Ultra-extreme temperature range improved high voltage resonant controller

Download L6599AFD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

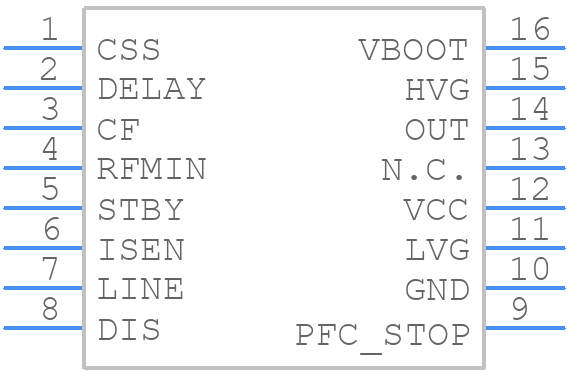

L6599AFD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6599AFD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N package information
click to zoom
3D Models
L6599AFD - STMicroelectronics - 3D model - Small Outline Packages - SO-16N package information
click to zoom

L6599AFD Details

  • Manufacturer Part Number:

    L6599AFD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    SO-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    8.85 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    260 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

L6599AFD Frequently Asked Questions (FAQs)

  • The L6599AFD can handle input voltages up to 60V, but it's recommended to keep it below 50V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet, and then fine-tune the value based on your specific application requirements.
  • The bootstrap capacitor (CBOOT) is used to generate the high-side gate drive voltage. The recommended value is 10nF to 100nF, but it may need to be adjusted based on the specific application requirements and the value of the high-side MOSFET.
  • The L6599AFD has a thermal pad that must be connected to a heat sink or a thermal interface material to ensure proper heat dissipation. The thermal resistance of the package is 25°C/W, so it's essential to follow proper thermal design guidelines to prevent overheating.
  • The L6599AFD requires a careful PCB design to minimize electromagnetic interference (EMI) and ensure reliable operation. It's recommended to follow the layout guidelines in the datasheet, keep the high-current paths short and wide, and use a solid ground plane to reduce noise and EMI.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6599AFD Overview

Use the download button to access the L6599AFD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6599, or try a keyword search, such as Switching Regulator or Controllers
