L6599AFDTR - STMicroelectronics

Description: Ultra-extreme temperature range improved high voltage resonant controller

Download L6599AFDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

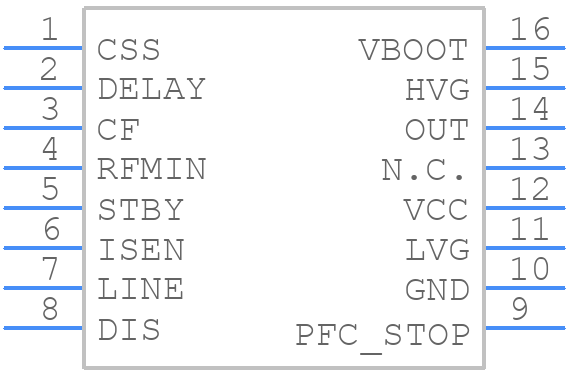

Symbol
L6599AFDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6599AFDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16N
click to zoom
3D Models
L6599AFDTR - STMicroelectronics - 3D model - Small Outline Packages - SO16N
click to zoom

L6599AFDTR Details

  • Manufacturer Part Number:

    L6599AFDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    SO-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    8.85 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    260 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

L6599AFDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2435, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The transformer selection depends on the input voltage, output voltage, and power rating of the design. STMicroelectronics provides a transformer selection guide in the application note AN2435, which includes formulas and guidelines for selecting the right transformer. Additionally, the L6599AFDTR datasheet provides a list of recommended transformers from various manufacturers.
  • The L6599AFDTR can operate in an ambient temperature range of -40°C to 150°C, but the maximum ambient temperature depends on the specific application and the thermal management of the system. It is recommended to follow the thermal design guidelines in the application note AN2435 to ensure reliable operation.
  • To ensure EMC, follow the guidelines in the application note AN2435, which includes recommendations for component selection, PCB layout, and shielding. Additionally, use a common-mode choke and a Y-capacitor to filter out electromagnetic interference (EMI). It is also recommended to perform EMC testing to ensure compliance with relevant standards.
  • The minimum input voltage required for the L6599AFDTR to operate is 8.5V, but it is recommended to use a minimum input voltage of 10V to ensure reliable operation and to account for voltage drops in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6599AFDTR Overview

Use the download button to access the L6599AFDTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6599, or try a keyword search, such as Switching Regulator or Controllers
