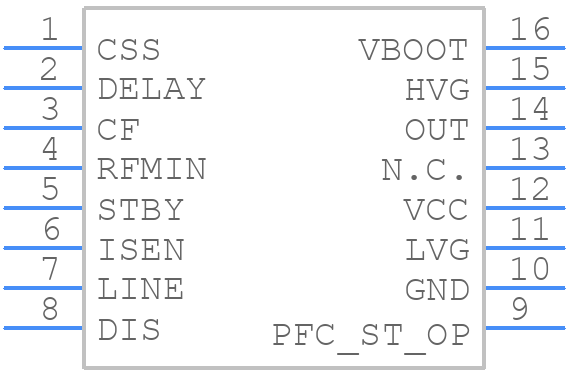

L6599AN - STMicroelectronics

L6599AN Details

• Manufacturer Part Number:

  L6599AN

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  LG-MAX

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  8.85 V

• Input Voltage-Nom:

  15 V

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  20 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.1 mm

• Supply Current-Max (Isup):

  5 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Switcher Configuration:

  PUSH-PULL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
