L6699DTR - STMicroelectronics

Description: Enhanced high voltage resonant controller

Download L6699DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

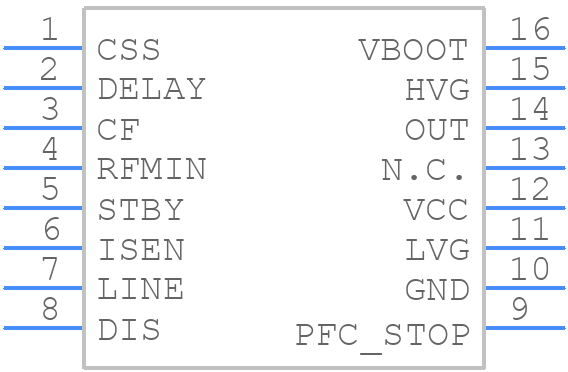

Symbol
L6699DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6699DTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N package information
click to zoom
3D Models
L6699DTR - STMicroelectronics - 3D model - Small Outline Packages - SO-16N package information
click to zoom

L6699DTR Details

  • Manufacturer Part Number:

    L6699DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.4

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    8.85 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    4.1 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    245 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

L6699DTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the L6699DTR is -40°C to 150°C.
  • To ensure proper configuration, refer to the application notes and design guidelines provided by STMicroelectronics, and consult with experienced engineers or STMicroelectronics' technical support if needed.
  • Follow the recommended PCB layout and thermal management guidelines provided in the datasheet and application notes, and consider using thermal vias, heat sinks, and thermal interface materials to ensure optimal performance and reliability.
  • Consult the troubleshooting guide in the datasheet and application notes, and use debugging tools such as oscilloscopes and logic analyzers to identify and isolate the issue. If needed, contact STMicroelectronics' technical support for further assistance.
  • Yes, follow the EMI and EMC guidelines provided in the datasheet and application notes, and consider using shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with relevant standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6699DTR Overview

Use the download button to access the L6699DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6699, or try a keyword search, such as Switching Regulator or Controllers
