- Part Number L6741TR
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO--8
- Released Date Aug 8, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
L6741TR Details
-
Manufacturer Part Number:
L6741TR
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
High Side Driver:
YES
-
Input Characteristics:
STANDARD
L6741TR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4101, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help with the selection process.
-
The maximum junction temperature of the L6741TR is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and long-term reliability.
-
While the L6741TR can operate up to 150°C, it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. STMicroelectronics provides thermal derating curves in the datasheet to help with the design process.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4101, which covers common issues and their solutions, such as output voltage regulation, current limiting, and thermal shutdown. Additionally, the datasheet provides a list of possible faults and their corresponding fault flags.
Trust Checks
Community Provided
System Verified
Community Approved
L6741TR Overview

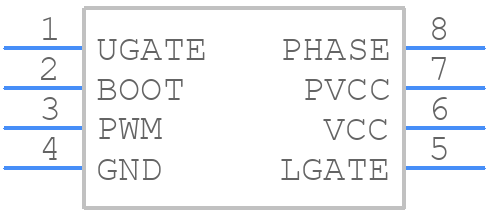

Use the download button to access the L6741TR schematic symbol, PCB footprint, and 3D model.
