L6983CQTR - STMicroelectronics

Description: 38 V, 3 A synchronous step-down converter with 17 μA quiescent current

Download L6983CQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

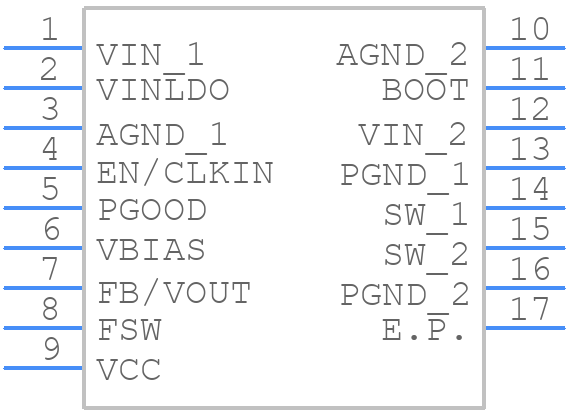

L6983CQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6983CQTR - STMicroelectronics PCB footprint - Other - Other - QFN16 (3 x 3 mm)
click to zoom
3D Models
L6983CQTR - STMicroelectronics - 3D model - Other - QFN16 (3 x 3 mm)
click to zoom

L6983CQTR Details

  • Manufacturer Part Number:

    L6983CQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-10-29

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    38 V

  • Output Voltage-Min:

    0.85 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

L6983CQTR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L6983CQTR is 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value, as recommended in the datasheet. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The maximum output current that the L6983CQTR can deliver is 3A, but it's recommended to keep it below 2.5A for optimal performance and reliability.
  • To protect the L6983CQTR from overheating, ensure good thermal conduction between the device and the PCB, use a suitable heat sink if necessary, and keep the ambient temperature within the recommended range. Also, avoid exceeding the maximum junction temperature of 150°C.
  • The L6983CQTR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you follow the recommended derating guidelines and take necessary precautions to prevent overheating.
