L6983IQTR - STMicroelectronics

Description: 38 V, 10 W synchronous iso-buck converter for isolated applications

Download L6983IQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

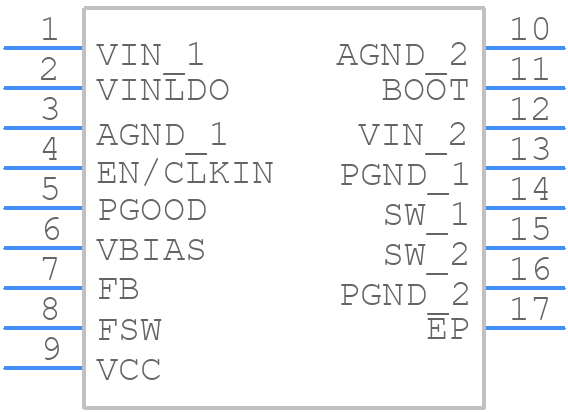

Symbol
L6983IQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L6983IQTR - STMicroelectronics PCB footprint - Other - Other - L6983IQTR-2
click to zoom
3D Models
L6983IQTR - STMicroelectronics - 3D model - Other - L6983IQTR-2
click to zoom

L6983IQTR Details

  • Manufacturer Part Number:

    L6983IQTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

L6983IQTR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the L6983IQTR is 28V, but it's recommended to keep it below 24V for reliable operation.
  • To ensure the L6983IQTR operates within its thermal limits, make sure to provide adequate heat sinking, keep the ambient temperature below 85°C, and avoid high power dissipation during operation.
  • Yes, the L6983IQTR can operate in high-temperature environments up to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. Derate the output current and ensure proper heat sinking to prevent overheating.
  • Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 100uF. The output capacitor should be rated for the output voltage and have a temperature range that matches the operating temperature of the application.
  • Follow a star-grounding layout, keep the input and output capacitors close to the IC, and use a separate ground plane for the output stage. Minimize the loop area of the input and output traces to reduce EMI.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L6983IQTR Overview

Use the download button to access the L6983IQTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L6983, or try a keyword search, such as Switching Regulator or Controllers
