L717HDA26PD1CH4R footprint, schematic symbol and 3D model by Amphenol

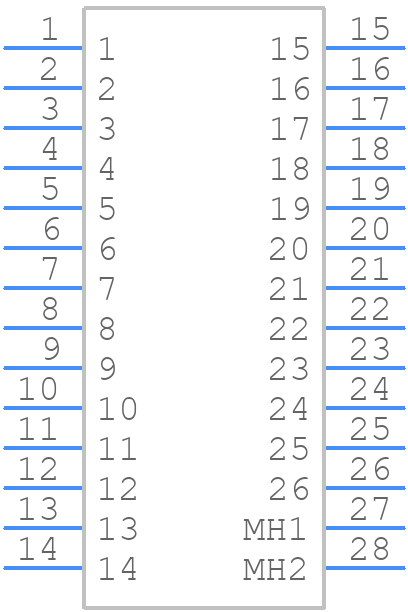

Symbol

click to zoom

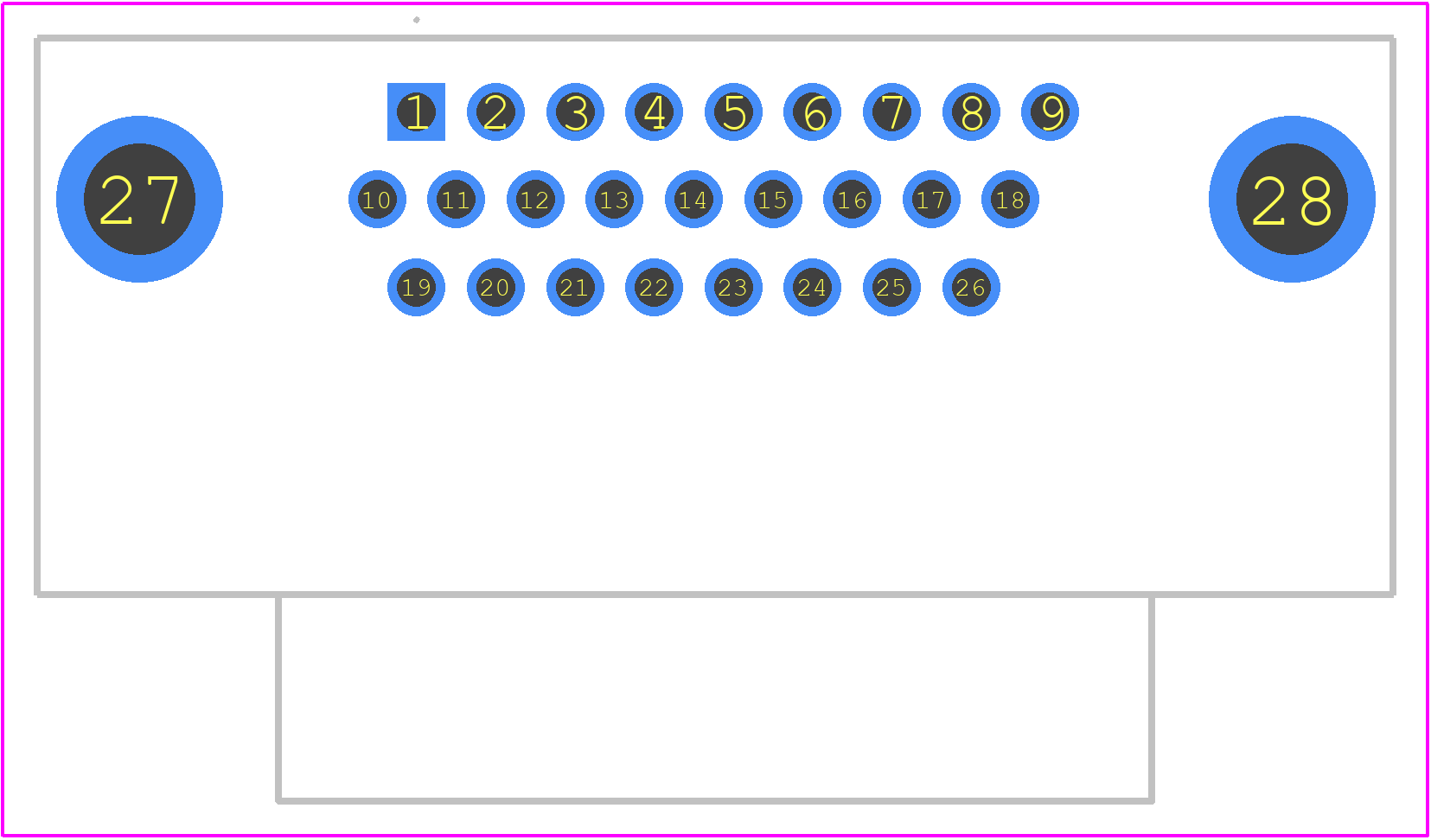

PCB Footprints

L717HDA26PD1CH4R - Amphenol PCB footprint - Other - Other - L717HDA26PD1CH4R-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for L717HDA26PD1CH4R
Part Number L717HDA26PD1CH4R
Manufacturer Amphenol
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - L717HDA26PD1CH4R-2
Released Date Sep 26, 2024
Last Modified Date Sep 26, 2024 6:24 AM UTC
Pinout / Pin List Click Here (Member Only)

L717HDA26PD1CH4R Details

Manufacturer Part Number:
L717HDA26PD1CH4R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks
Manufacturer:
Amphenol Corporation
YTEOL:
8
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYETHYLENE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
2/A
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

L717HDA26PD1CH4R Frequently Asked Questions (FAQs)

The recommended torque value is typically between 0.5 to 1.5 Nm (5-15 in-lbs), but it's best to consult Amphenol's application notes or contact their technical support for specific guidance.
Yes, the L717HDA26PD1CH4R is designed to meet the requirements of MIL-DTL-26482, which includes vibration testing. However, it's essential to ensure proper mounting and screw torque to maintain the connector's integrity in high-vibration applications.
The operating temperature range for the L717HDA26PD1CH4R is typically -55°C to 125°C (-65°F to 257°F), but it's recommended to consult the datasheet or Amphenol's documentation for specific temperature ratings and derating factors.
The L717HDA26PD1CH4R has a nickel-plated brass shell and epoxy-sealed inserts, which provide some level of environmental protection. However, it's essential to consult Amphenol's documentation and perform additional testing to ensure the connector meets the specific requirements of your application.
The L717HDA26PD1CH4R is designed for use with specific cable types and sizes. Consult Amphenol's documentation or contact their technical support to determine the compatibility of the connector with your desired cable configuration.

Trust Checks

Community Provided

System Verified

Community Approved

L717HDA26PD1CH4R Overview

Use the download button to access the L717HDA26PD1CH4R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like L717H, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
