Part Image

L717TSAH15POL2RM8C309 - Amphenol

Description: Dsub, Stamped Signal 3A, Straight PCB Thru Hole Low Profile, Height=6.02mm (0.237in), 15 Pin, Bright Tin Shell+Grounding Dimples, 0.76m (30 in) Gold, 4-40 Threaded Boardlock with 4-40 Front Screwlock Installed

Download L717TSAH15POL2RM8C309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L717TSAH15POL2RM8C309 - Amphenol - PCB symbol
click to zoom
PCB Footprints

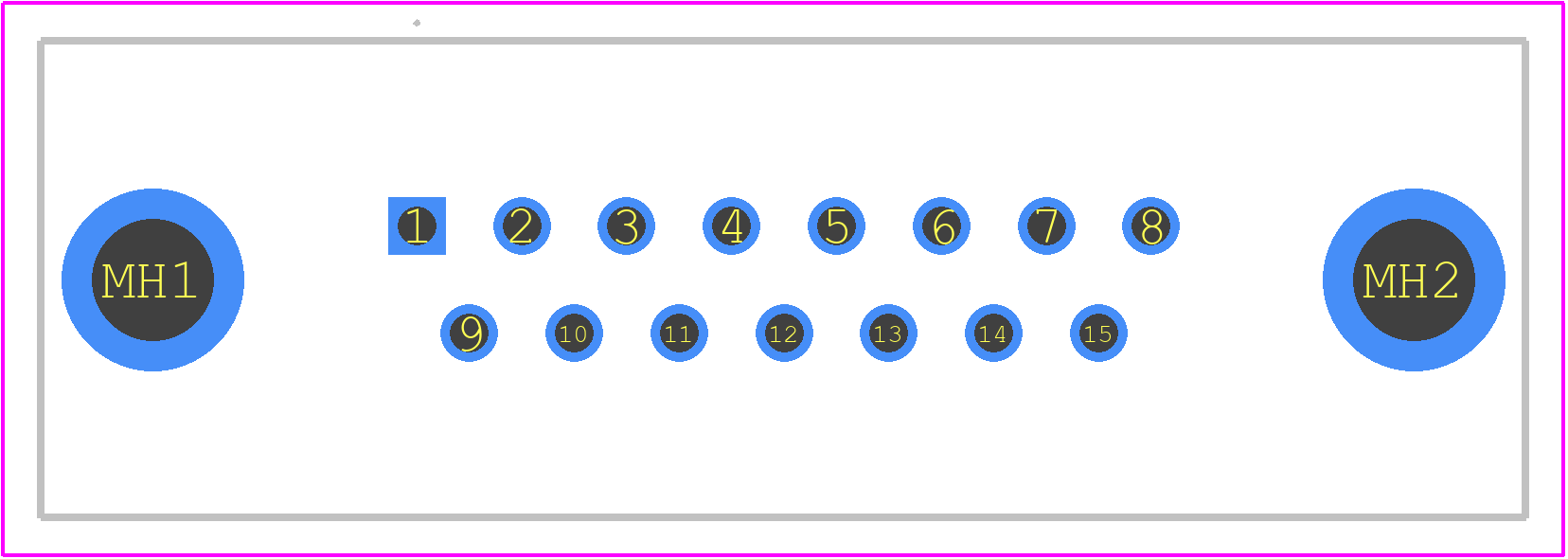

L717TSAH15POL2RM8C309 - Amphenol PCB footprint - Other - Other - L717TSAH15POL2RM8C309-1
click to zoom
3D Models
L717TSAH15POL2RM8C309 - Amphenol - 3D model - Other - L717TSAH15POL2RM8C309-1
click to zoom

L717TSAH15POL2RM8C309 Details

  • Manufacturer Part Number:

    L717TSAH15POL2RM8C309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.18

  • Additional Feature:

    STANDARD: MIL-C-24308

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL/TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

L717TSAH15POL2RM8C309 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.
  • Yes, the L717TSAH15POL2RM8C309 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 Hz with a maximum amplitude of 1 mm.
  • Yes, the L717TSAH15POL2RM8C309 is designed for outdoor use and meets the IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to follow proper installation and sealing procedures to ensure the connector remains watertight.
  • The L717TSAH15POL2RM8C309 has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The L717TSAH15POL2RM8C309 is designed to be compatible with other mating connectors that meet the same industry standards (e.g., IEC 61076-2-101). However, it's recommended to verify compatibility with the specific mating connector from another manufacturer to ensure reliable connections and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L717TSAH15POL2RM8C309 Overview

Use the download button to access the L717TSAH15POL2RM8C309 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L717T, or try a keyword search, such as Other Interconnects

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
