L77DEG09S1APNRM6 - Amphenol

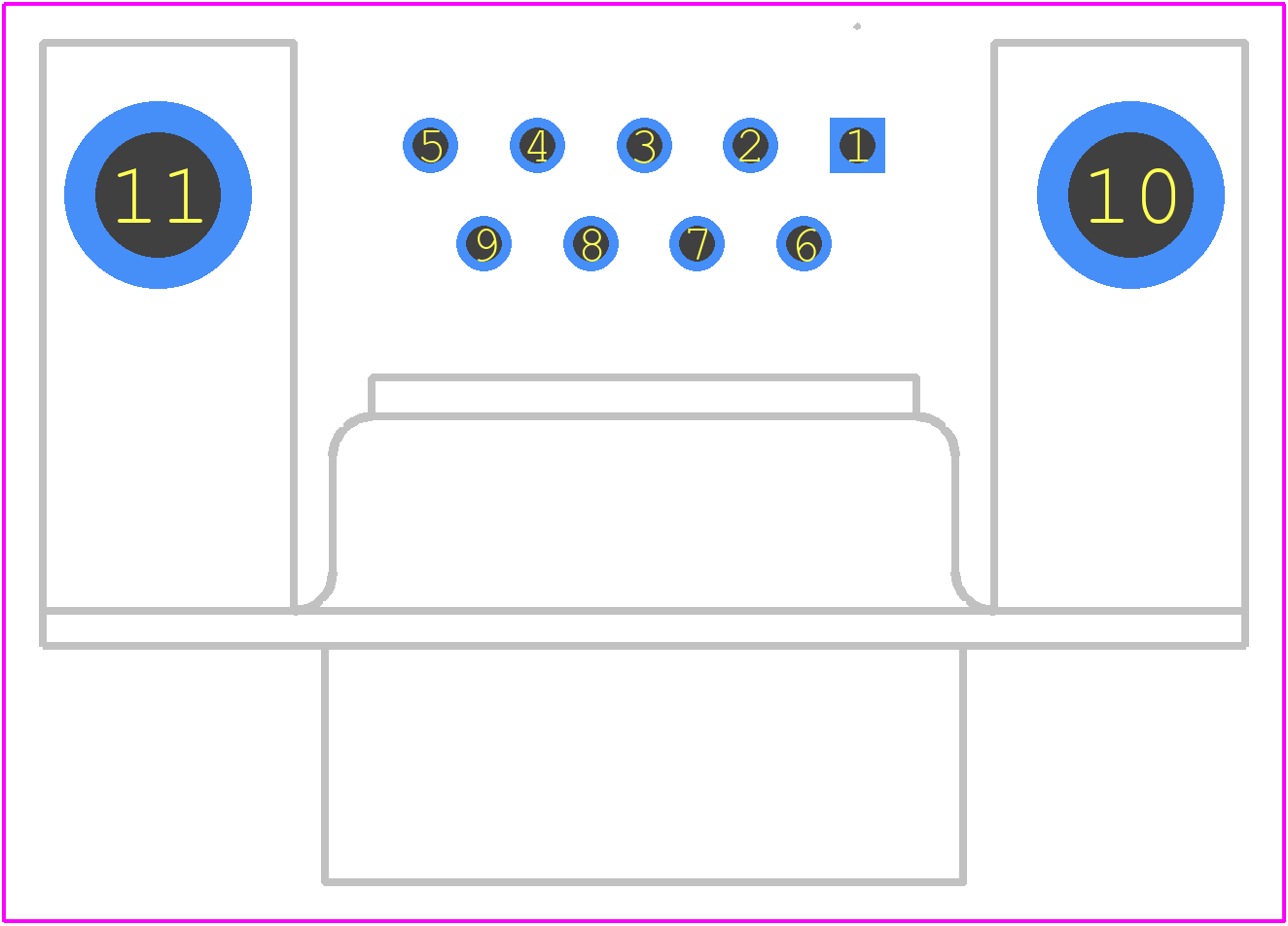

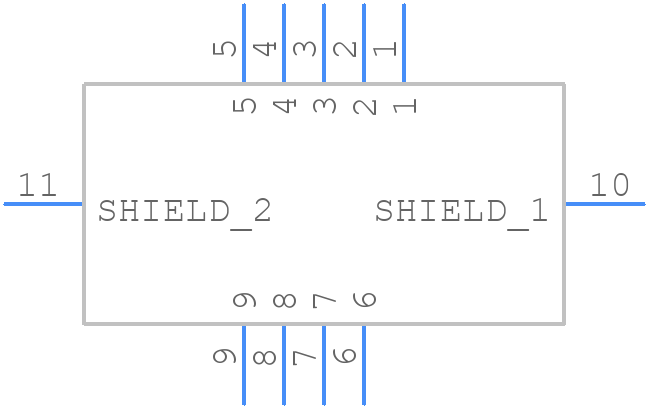

L77DEG09S1APNRM6 Details

• Manufacturer Part Number:

  L77DEG09S1APNRM6

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  9

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.488 inch

• Body Depth:

  0.518 inch

• Body Length:

  1.209 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8.5 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  29.91 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• Mating Contact Pitch:

  0.108 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  M3

• Mounting Option 2:

  INSERT

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  8u inch

• Rated Current (Signal):

  7.5 A

• Reference Standard:

  MIL; UL

• Shell Finish:

  TIN PLATED

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.74 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.53 N
