L7812CT footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

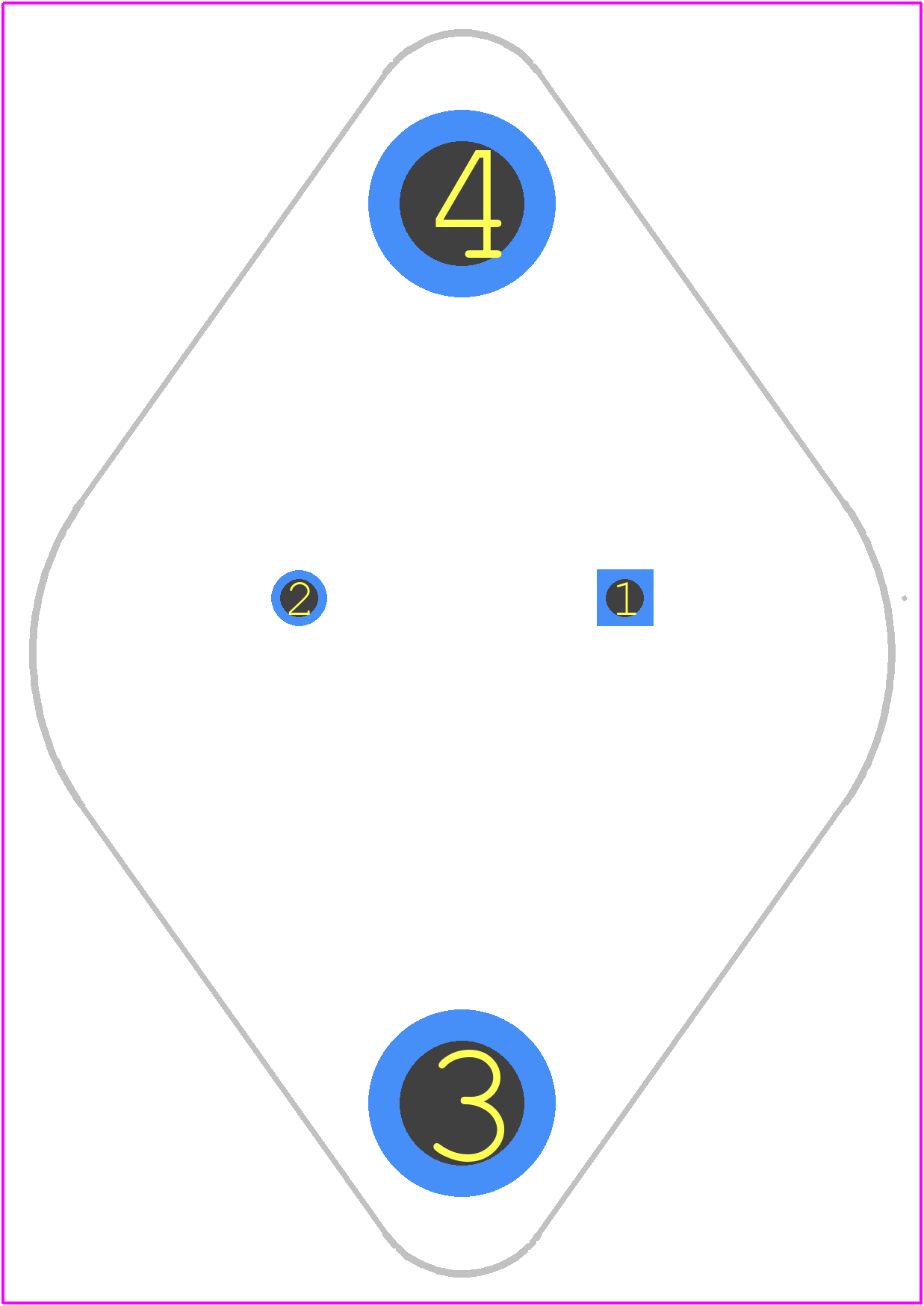

L7812CT - STMicroelectronics PCB footprint - Other - Other - L7812CT-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for L7812CT
Part Number L7812CT
Manufacturer STMicroelectronics
Pin Count 4
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - L7812CT-3
Released Date Mar 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

L7812CT Details

Manufacturer Part Number:
L7812CT
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
TO-204AA
Package Description:
ROHS COMPLIANT, TO-3, 2 PIN
Pin Count:
2
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Adjustability:
FIXED
Dropout Voltage1-Nom:
2 V
Input Voltage Absolute-Max:
35 V
Input Voltage-Max:
30 V
Input Voltage-Min:
14.5 V
JESD-30 Code:
O-XBFM-P2
JESD-609 Code:
e3
Line Regulation-Max:
0.24%
Load Regulation-Max:
0.24%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
3
Operating Temperature TJ-Max:
125 °C
Output Current1-Max:
1.5 A
Output Voltage1-Max:
12.6 V
Output Voltage1-Min:
11.4 V
Output Voltage1-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
TO-3
Package Equivalence Code:
TO-204/-3
Package Shape:
ROUND
Package Style:
FLANGE MOUNT
Packing Method:
BULK
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Surface Mount:
NO
Technology:
BIPOLAR
Terminal Finish:
Tin (Sn)
Terminal Form:
PIN/PEG
Terminal Position:
BOTTOM
Voltage Tolerance-Max:
5%

L7812CT Frequently Asked Questions (FAQs)

The maximum input voltage that can be applied to the L7812CT is 35V, but it's recommended to keep it below 25V for reliable operation.
To ensure stability, a minimum output capacitance of 10uF is recommended, and the input capacitor should be at least 100nF. Additionally, the input and output capacitors should be placed close to the regulator.
The L7812CT can supply up to 1A of output current, but it's recommended to derate the current based on the ambient temperature and the input voltage.
To protect the L7812CT from overheating, ensure good heat sinking, and consider adding a heat sink if the device will be operating at high temperatures or with high input voltages.
No, the L7812CT is a linear voltage regulator and is not suitable for use in switching regulator applications. It's designed for use in linear power supplies only.
