L7987L - STMicroelectronics

Description: Switching Voltage Regulators 61 V 2 A asynchronous step-down switching regulator with adjustable current limitation

Download L7987L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

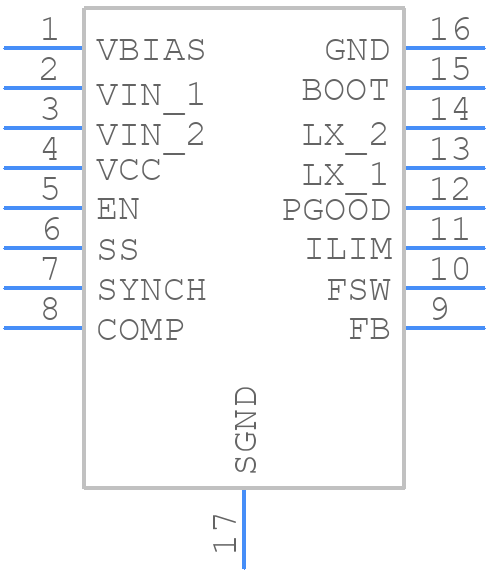

L7987L - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L7987L - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-16
click to zoom
3D Models
L7987L - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP-16
click to zoom

L7987L Details

  • Manufacturer Part Number:

    L7987L

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    61 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.45 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1650 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

L7987L Frequently Asked Questions (FAQs)

  • The L7987L can handle input voltages up to 30V, but it's recommended to keep it below 25V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout and component placement guidelines, and add a 10uF ceramic capacitor between the VIN and GND pins. Also, use a low-ESR output capacitor (e.g., X5R or X7R) and keep the output voltage ripple below 1%.
  • The L7987L can operate with input voltages as low as 6.5V, but the output voltage regulation may not be guaranteed below 7V. For optimal performance, it's recommended to keep the input voltage above 7.5V.
  • The L7987L is rated for operation up to 150°C, but its performance and reliability may degrade above 125°C. If you need to operate in high-temperature environments, consider using a heat sink or a thermally-enhanced package.
  • The output voltage of the L7987L is determined by the resistor divider network (R1 and R2) connected to the FB pin. Use the formula: Vout = 0.8V x (1 + R2/R1) to calculate the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L7987L Overview

Use the download button to access the L7987L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L7987, or try a keyword search, such as Switching Regulator or Controllers
