L9339 - STMicroelectronics

Description: Quad Low-Side Driver

Download L9339 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

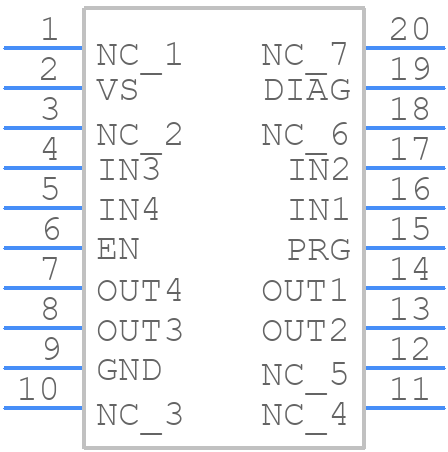

Symbol
L9339 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9339 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO20 package-
click to zoom
3D Models
L9339 - STMicroelectronics - 3D model - Small Outline Packages - SO20 package-
click to zoom

L9339 Details

  • Manufacturer Part Number:

    L9339

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    TTL AND CMOS COMPATIBLE INPUTS

  • Built-in Protections:

    TRANSIENT; THERMAL

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    4.5 µs

  • Turn-on Time:

    3.5 µs

  • Width:

    7.5 mm

L9339 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4996, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The L9339 datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, STMicroelectronics offers a dedicated tool, the STMicroelectronics Component Selector, to help engineers select the most suitable components for their specific application.
  • The L9339 is rated for operation from -40°C to 150°C (junction temperature), but the maximum operating temperature range depends on the specific application and the thermal management design. Engineers should consult the datasheet and application notes for guidance on thermal design and derating.
  • The L9339 has a built-in overcurrent protection feature, which can be enabled by connecting the OCP pin to a resistor and capacitor network. The application note AN4996 provides a detailed example of how to implement overcurrent protection and adjust the threshold and response time to suit specific application requirements.
  • The L9339 is designed for automotive applications with a maximum input voltage of 40V. While it can tolerate voltage transients up to 45V, it is not recommended for use in high-voltage applications above 40V. Engineers should consult the datasheet and application notes for guidance on voltage derating and protection.
