L9349-LF - STMicroelectronics

Description: Power Switch ICs - Power Distribution Quad intelligent Power Side Switch

Download L9349-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

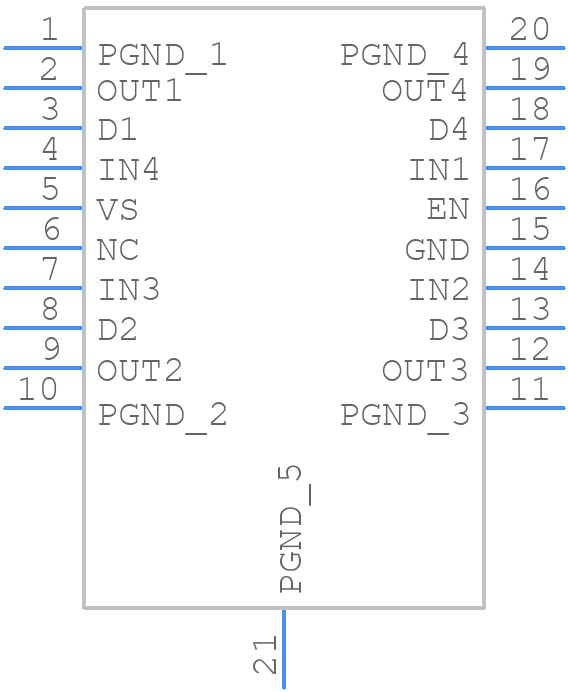

L9349-LF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9349-LF - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20
click to zoom
3D Models
L9349-LF - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20
click to zoom

L9349-LF Details

  • Manufacturer Part Number:

    L9349-LF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max:

    32 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    25 µs

  • Width:

    11 mm

L9349-LF Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable communication, use a dedicated SPI bus with a maximum clock frequency of 1 MHz, and ensure that the microcontroller's SPI mode is set to Mode 0 or Mode 3. Also, use a pull-up resistor on the CS pin to prevent unwanted chip select.
  • STMicroelectronics recommends a 10 μF to 22 μF ceramic capacitor with an X7R or X5R dielectric, placed as close as possible to the VIN pin to filter out noise and ensure stable operation.
  • To handle overvoltage protection, use an external voltage supervisor or a dedicated overvoltage protection IC, such as the STMicroelectronics STM660. This will ensure that the L9349-LF is protected from voltage transients and surges.
  • The recommended operating temperature range for the L9349-LF is -40°C to 125°C. However, for optimal performance and reliability, it is recommended to operate the device within the -20°C to 85°C range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9349-LF Overview

Use the download button to access the L9349-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9349, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
