- Part Number L9663-TR
- Manufacturer STMicroelectronics
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - TQFT
- Released Date Aug 27, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9663-TR Details
-
Manufacturer Part Number:
L9663-TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
TQFP-32
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
Factory Lead Time:
36 Weeks
-
Date Of Intro:
2016-01-19
-
Manufacturer:
STMicroelectronics
-
YTEOL:
9
L9663-TR Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
-
Use a proper SPI protocol with a clock frequency up to 10 MHz, ensure correct pin connections, and add a 100 nF decoupling capacitor between VCC and GND near the L9663-TR.
-
The maximum allowed voltage on the input pins is 6.5V, exceeding this may cause damage to the device.
-
The POR and BOR features are enabled by default. To disable them, tie the POR/BOR pin to VCC. For proper operation, ensure a stable power supply and a capacitor on the VCC pin.
-
The recommended operating temperature range is -40°C to 125°C. Operating outside this range may affect the device's performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9663-TR Overview

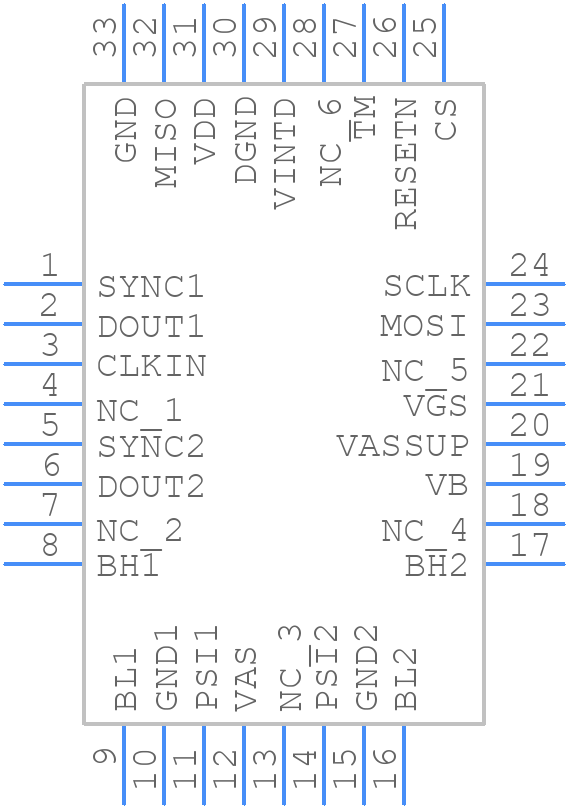

Use the download button to access the L9663-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9663,
or try a keyword search, such as Network Interfaces
