A good PCB layout for the L9691-TR should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, consider using a thermal sensor to monitor the device temperature and implement thermal shutdown or throttling if necessary.
For fault detection and protection, it's essential to monitor parameters such as input voltage, output voltage, output current, and device temperature. Implementing over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), and thermal shutdown can help prevent damage to the device and ensure reliable operation.
To optimize the L9691-TR for low-power consumption, consider using a low-dropout linear regulator, optimizing the output voltage and current, and using power-saving modes such as shutdown or standby. Additionally, selecting components with low quiescent current and using a high-efficiency power stage can help minimize power consumption.
To minimize electromagnetic interference (EMI), use a combination of filtering and shielding techniques such as adding ferrite beads or chokes to the input and output lines, using a metal shield around the device, and implementing a Faraday cage or shielded enclosure. Additionally, follow proper PCB layout guidelines to minimize radiation and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
L9691-TR Overview

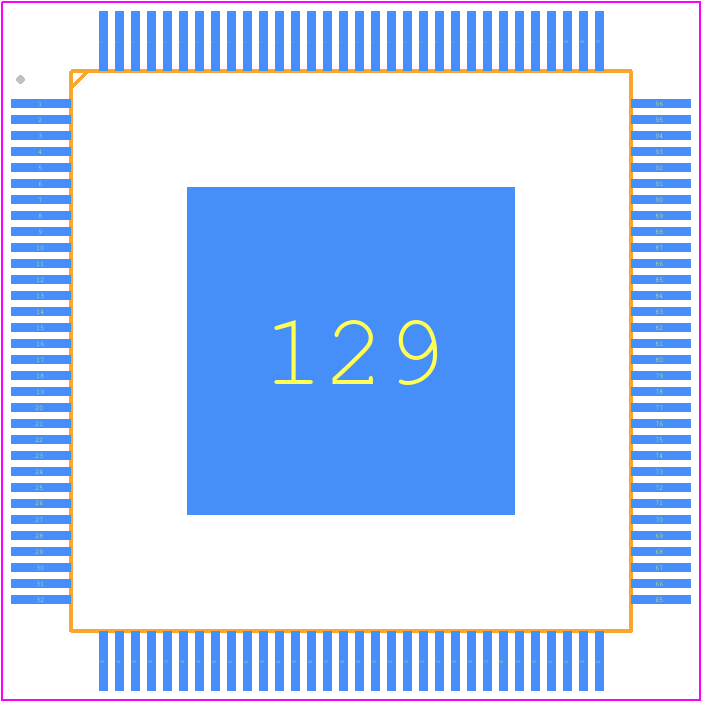

Use the download button to access the L9691-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9691,
or try a keyword search, such as Other Signal Circuits
About STMicroelectronics
STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components.
STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
