L9777B - STMicroelectronics

Description: Low power voltage regulator

Download L9777B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

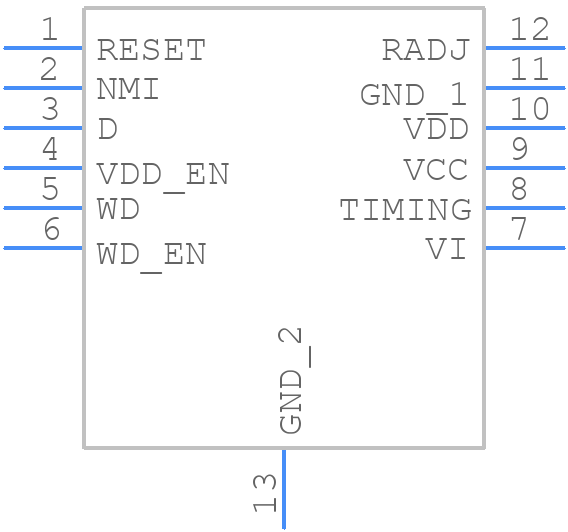

Symbol
L9777B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9777B - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - NBNBNVBNVBNPowerSSO-12 height 1.7
click to zoom
3D Models
L9777B - STMicroelectronics - 3D model - Small Outline Packages - NBNBNVBNVBNPowerSSO-12 height 1.7
click to zoom

L9777B Details

  • Manufacturer Part Number:

    L9777B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-12

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.16

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage Absolute-Max:

    40 V

  • Input Voltage-Max:

    31 V

  • Input Voltage-Min:

    6.6 V

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.025%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

L9777B Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4391, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help with the selection process.
  • The maximum junction temperature of the L9777B is 150°C, as specified in the datasheet. It's essential to ensure that the device operates within the recommended temperature range to prevent overheating and ensure reliability.
  • While the L9777B can operate up to 150°C, it's essential to consider the derating of the device's performance and reliability at high temperatures. STMicroelectronics provides thermal derating curves in the datasheet to help designers assess the device's performance in high-temperature environments.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4391, which covers common issues and their solutions, such as output voltage regulation, current limiting, and thermal shutdown. Additionally, the datasheet provides a list of possible faults and their corresponding fault flags.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9777B Overview

Use the download button to access the L9777B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9777, or try a keyword search, such as Linear Regulator ICs
