L9780TR - STMicroelectronics

Description: Wide range air fuel sensor control interface

Download L9780TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

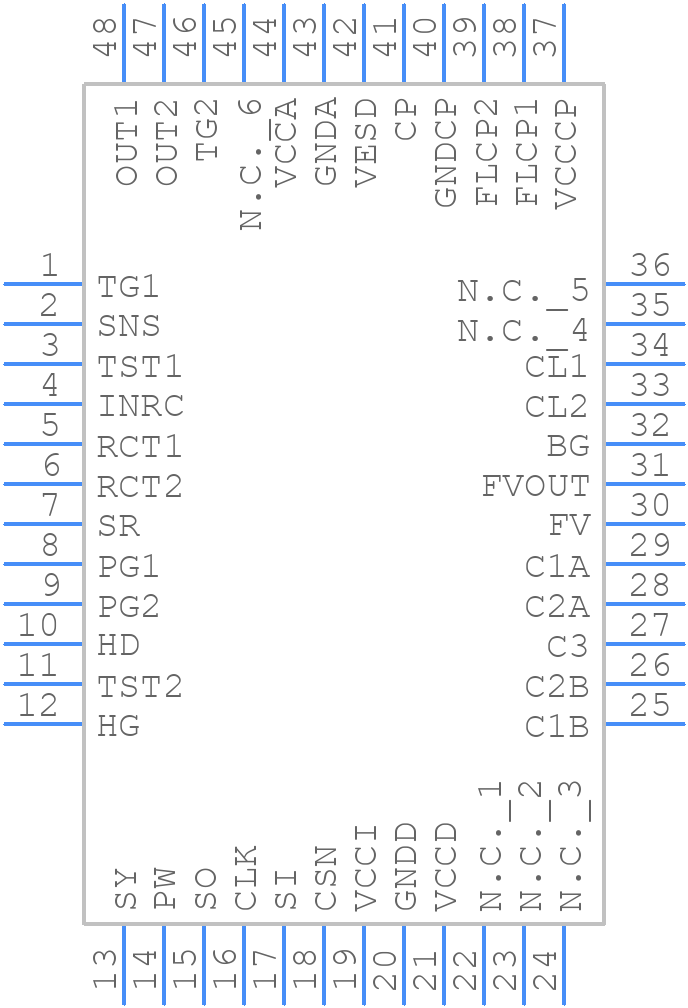

Symbol
L9780TR - STMicroelectronics - PCB symbol
click to zoom

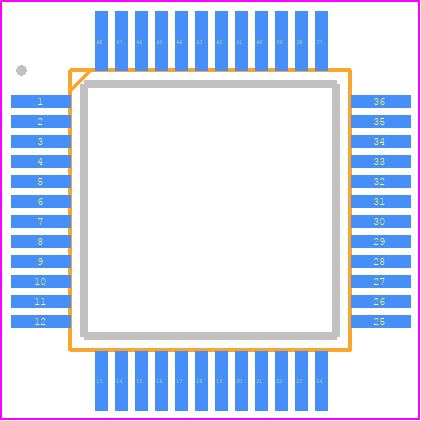

PCB Footprints
L9780TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - . LQFP48 mechanical data
click to zoom
3D Models
L9780TR - STMicroelectronics - 3D model - Quad Flat Packages - . LQFP48 mechanical data
click to zoom

L9780TR Details

  • Manufacturer Part Number:

    L9780TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    5.1 V

  • Supply Voltage-Min (Vsup):

    4.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

L9780TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L9780TR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended on the output.
  • The L9780TR can handle a maximum input voltage of 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent overheating.
  • The L9780TR is rated for operation up to 150°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. A thermal analysis should be performed to ensure the IC doesn't exceed its maximum junction temperature.
  • To protect the L9780TR from input voltage surges and spikes, use a TVS diode or a transient voltage suppressor in parallel with the input capacitor. This will help to clamp the input voltage and prevent damage to the IC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9780TR Overview

Use the download button to access the L9780TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9780, or try a keyword search, such as Other Signal Circuits
