L9822E - STMicroelectronics

Description: Octal serial solenoid driver, Internal 36 V clamping for each outpu, 15-Multiwatt, 550mOhm, -40°C ~ 150°C

Download L9822E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

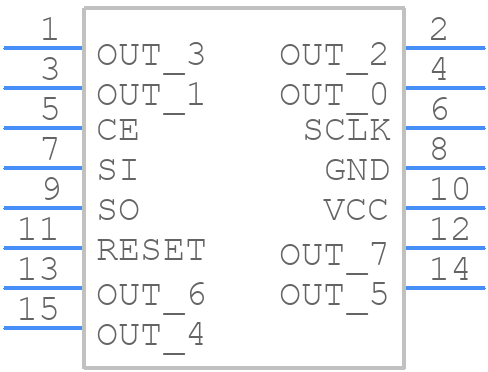

L9822E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

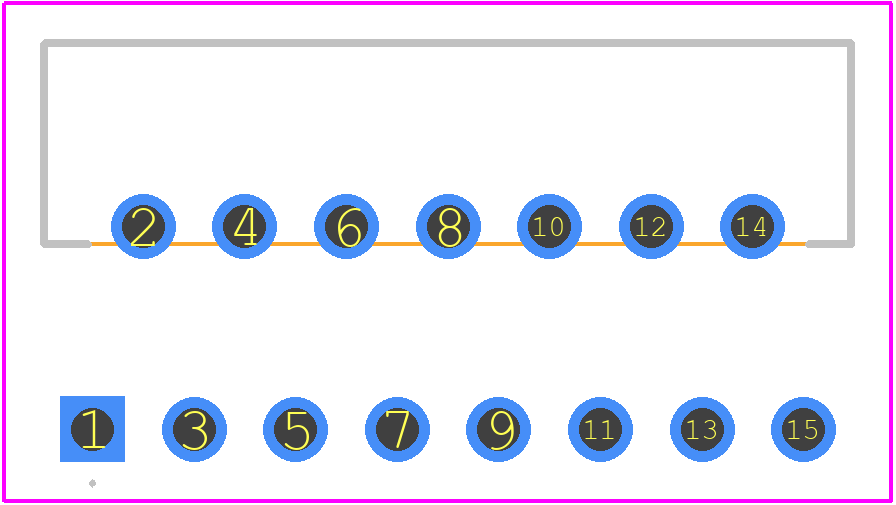

L9822E - STMicroelectronics PCB footprint - Other - Other - Multiwatt 15_2025
click to zoom
3D Models
L9822E - STMicroelectronics - 3D model - Other - Multiwatt 15_2025
click to zoom

L9822E Details

  • Manufacturer Part Number:

    L9822E

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, MULTIWATT-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PZFM-T15

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    1 A

  • Output Peak Current Limit-Nom:

    1.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.2,.17TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCD

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

L9822E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right inductor for their design.
  • The maximum junction temperature of the L9822E is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and minimize the risk of thermal shutdown.
  • The L9822E is rated for operation up to 105°C ambient temperature, but it's not recommended to use it in high-temperature environments above 125°C without proper thermal management and derating. Engineers should consult the datasheet and application notes for guidance on using the L9822E in high-temperature applications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4553, which covers common issues and their solutions, such as output voltage regulation, current limiting, and thermal shutdown. Engineers can also consult the datasheet and contact STMicroelectronics' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9822E Overview

Use the download button to access the L9822E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9822, or try a keyword search, such as Peripheral Drivers
