L9823013TR - STMicroelectronics

Description: Octal low-side driver for bulb, resistive and inductive loads with serial input control, output protection and diagnostic

Download L9823013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

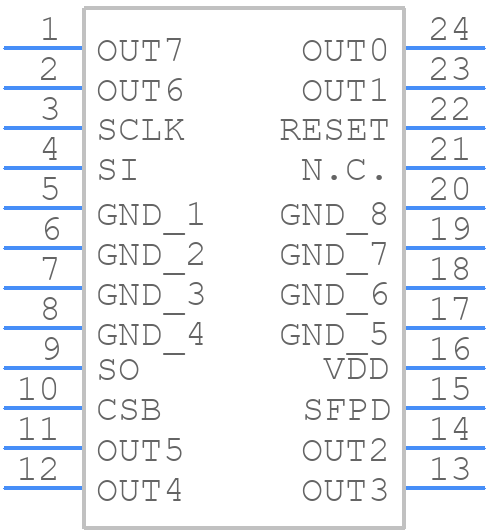

L9823013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9823013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-24
click to zoom
3D Models
L9823013TR - STMicroelectronics - 3D model - Small Outline Packages - SO-24
click to zoom

L9823013TR Details

  • Manufacturer Part Number:

    L9823013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.98

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.5 A

  • Output Peak Current Limit-Nom:

    1.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    20 µs

  • Turn-on Time:

    20 µs

  • Width:

    7.5 mm

L9823013TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure stable operation.
  • The input capacitor should be selected based on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF.
  • The maximum ambient temperature for the L9823013TR is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, the L9823013TR is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its robust design, high-quality manufacturing, and rigorous testing.
  • To troubleshoot issues with the L9823013TR, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and thermal management. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
