L9826 - STMicroelectronics

Description: Octal protected low-side driver with diagnostic and serial/parallel input control

Download L9826 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

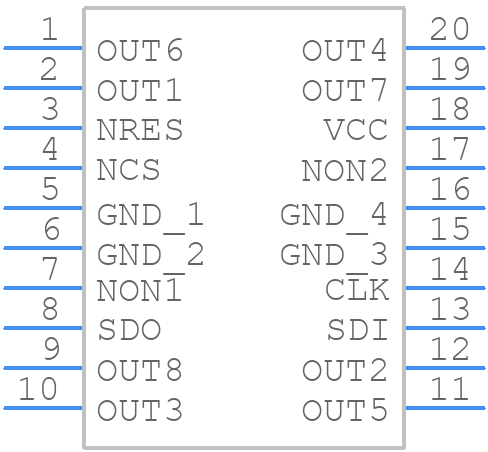

L9826 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9826 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20 (12+4+4)
click to zoom
3D Models
L9826 - STMicroelectronics - 3D model - Small Outline Packages - SO-20 (12+4+4)
click to zoom

L9826 Details

  • Manufacturer Part Number:

    L9826

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.05

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL

  • Driver Number of Bits:

    8

  • Interface IC Type:

    SIPO BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    1 A

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    10 µs

  • Width:

    7.5 mm

L9826 Frequently Asked Questions (FAQs)

  • The L9826 can operate from -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The L9826 requires a proper power-up sequence, including a stable input voltage, a valid clock signal, and a reset signal. Refer to the application note AN4578 for a detailed power-up sequence.
  • A good PCB design for the L9826 should include a solid ground plane, decoupling capacitors, and a well-designed power supply. Refer to the application note AN4578 for more information on PCB design guidelines.
  • Use a logic analyzer or oscilloscope to monitor the signals and verify the correct operation of the device. Check the power supply, clock signal, and reset signal for any issues. Refer to the datasheet and application notes for troubleshooting guidelines.
  • Yes, the L9826 is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9826 Overview

Use the download button to access the L9826 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
