- Part Number L9954LXPTR
- Manufacturer STMicroelectronics
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSSO-36--1
- Released Date Aug 29, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9954LXPTR Details
-
Manufacturer Part Number:
L9954LXPTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Part Package Code:
SSOP
-
Package Description:
ROHS COMPLIANT, SSOP-36
-
Pin Count:
36
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
23 Weeks
-
Manufacturer:
STMicroelectronics
L9954LXPTR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The L9954LXPTR is a highly configurable device, and the configuration depends on the specific motor type and application requirements. Engineers can refer to the application note AN4395 and the device's programming guide to understand how to configure the device for their specific use case.
-
The L9954LXPTR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure proper thermal management and heat sinking to maintain a safe operating temperature.
-
While the L9954LXPTR is designed to operate with a 12V supply, it can operate with a voltage range of 6V to 18V. However, engineers should ensure that the device is properly configured and the voltage supply meets the device's requirements to avoid any performance or reliability issues.
-
STMicroelectronics provides a troubleshooting guide in the application note AN4395, which covers common issues and their solutions. Engineers can also refer to the device's datasheet and programming guide for more information on debugging and troubleshooting.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9954LXPTR Overview

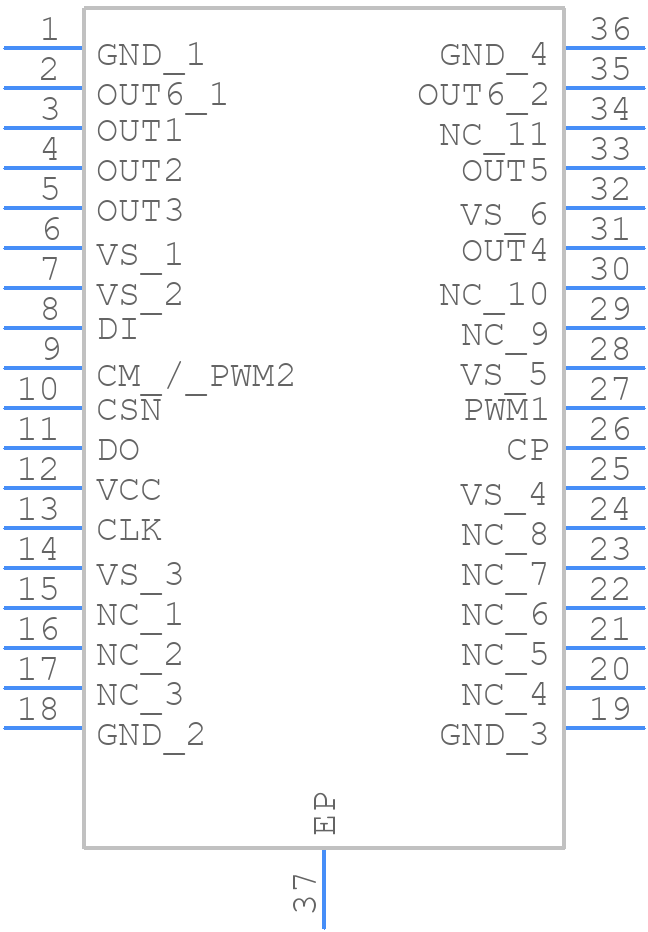

Use the download button to access the L9954LXPTR schematic symbol, PCB footprint, and 3D model.
