- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for L9997ND013TR
- Part Number L9997ND013TR
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO-20-2022
- Released Date Aug 28, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
L9997ND013TR Details
-
Manufacturer Part Number:
L9997ND013TR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SO-20
-
Pin Count:
20
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
STMicroelectronics
L9997ND013TR Frequently Asked Questions (FAQs)
-
A good PCB layout for the L9997ND013TR involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
The choice of input and output capacitors for the L9997ND013TR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the output voltage and current requirements, with a general guideline of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
-
The L9997ND013TR is rated for operation in an ambient temperature range of -40°C to 150°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
-
Proper thermal management of the L9997ND013TR involves ensuring good airflow around the device, using a heat sink if necessary, and keeping the device away from other heat sources. The device's thermal pad should be connected to a solid ground plane to help dissipate heat. Additionally, the device's power dissipation should be calculated and managed to prevent overheating.
-
The L9997ND013TR is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, it's recommended to use a shielded inductor, keep the power traces short and away from sensitive circuits, and use a common-mode choke if necessary. Additionally, the device should be placed in a metal enclosure to reduce electromagnetic radiation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
L9997ND013TR Overview

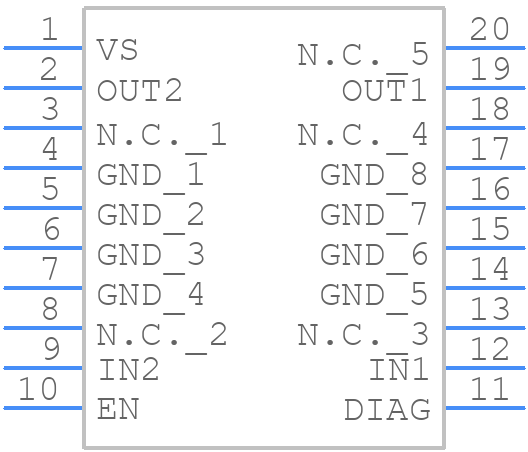

Use the download button to access the L9997ND013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9997,
or try a keyword search, such as Peripheral Drivers
