L99H02QFTR - STMicroelectronics

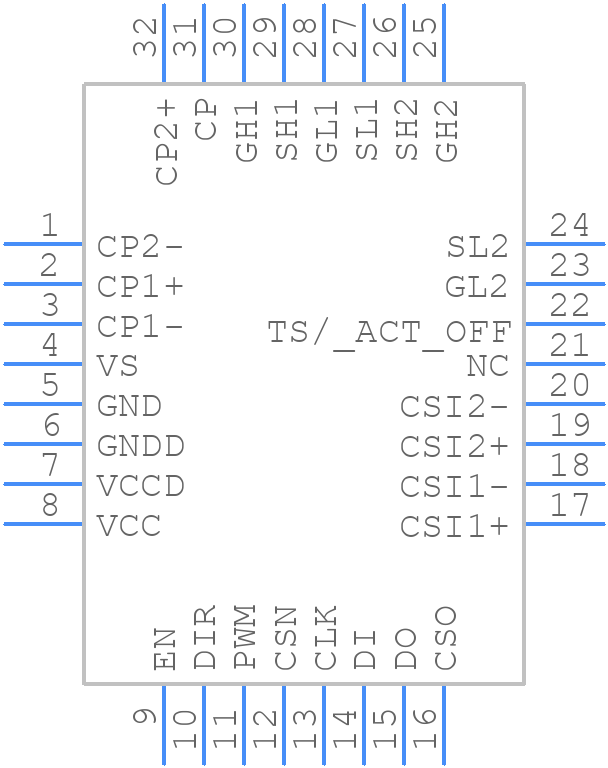

L99H02QFTR Details

• Manufacturer Part Number:

  L99H02QFTR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LQFP-32

• Country Of Origin:

  Malaysia, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  23 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQFP-G32

• Length:

  7 mm

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  0.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP32,.35SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Max:

  5.3 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  28 V

• Supply Voltage1-Min:

  6 V

• Supply Voltage1-Nom:

  13 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  1.9 µs

• Turn-on Time:

  1.8 µs

• Width:

  7 mm
