L99H02XP - STMicroelectronics

Description: H-bridge gate driver for automotive applications

Download L99H02XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

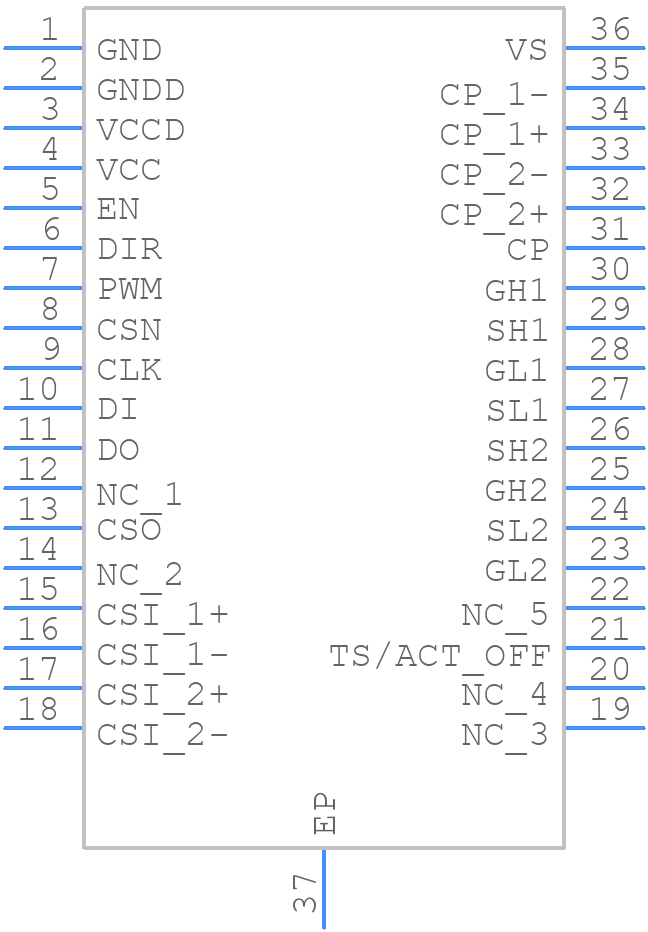

L99H02XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99H02XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPU--0
click to zoom
3D Models
L99H02XP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPU--0
click to zoom

L99H02XP Details

  • Manufacturer Part Number:

    L99H02XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    5.3 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1.9 µs

  • Turn-on Time:

    1.8 µs

  • Width:

    7.5 mm

L99H02XP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • The L99H02XP has a standby mode that can be enabled by setting the STB pin low. Additionally, the device can be configured for low-power mode by setting the LP pin high. Refer to the datasheet and application notes for specific configuration details and timing diagrams.
  • The L99H02XP is rated for operation from -40°C to 150°C (junction temperature). However, the device can be operated at a maximum ambient temperature of 125°C with proper heat sinking and thermal management.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4395, which includes a step-by-step approach to identifying and resolving common issues. Additionally, engineers can use oscilloscopes, logic analyzers, and other diagnostic tools to debug the system.
  • Yes, the L99H02XP is suitable for automotive applications. It meets the requirements of the AEC-Q100 standard and is compliant with ISO 26262 (Functional Safety) and IATF 16949 (Quality Management System) standards. However, engineers should consult the datasheet and application notes for specific details on certification and compliance requirements.
