L99H02XPTR - STMicroelectronics

Description: H-bridge gate driver for automotive applications

Download L99H02XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

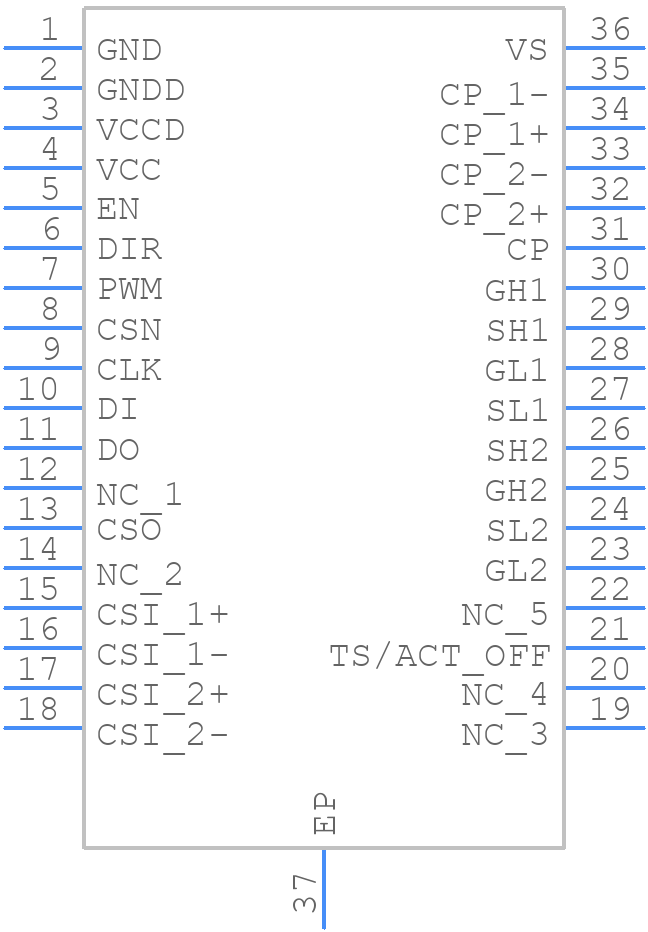

Symbol
L99H02XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99H02XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - --0PowerSSO-36 EPD_2020-
click to zoom
3D Models
L99H02XPTR - STMicroelectronics - 3D model - Small Outline Packages - --0PowerSSO-36 EPD_2020-
click to zoom

L99H02XPTR Details

  • Manufacturer Part Number:

    L99H02XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    5.3 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    1.9 µs

  • Turn-on Time:

    1.8 µs

  • Width:

    7.5 mm

L99H02XPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The L99H02XPTR is a highly configurable device that supports various vehicle protocols such as SAE J1850, ISO 9141-2, and SAE J1939. Configuration is done through the SPI interface, and STMicroelectronics provides a software development kit (SDK) and documentation to help with the configuration process.
  • The maximum cable length supported by the L99H02XPTR depends on the specific vehicle protocol and the cable characteristics. As a general guideline, STMicroelectronics recommends keeping the cable length below 10 meters for SAE J1850 and ISO 9141-2 protocols, and below 40 meters for SAE J1939 protocol. However, it's essential to perform signal integrity analysis and testing to ensure reliable communication over the desired cable length.
  • To ensure EMC in your design, follow the guidelines provided in the application note AN4841, which includes recommendations for PCB layout, component selection, and shielding. Additionally, STMicroelectronics provides an EMC compliance report for the L99H02XPTR, which can be used as a reference for your design.
  • The L99H02XPTR has a specific power-on and power-off sequence that must be followed to ensure proper operation. The device has a power-on reset (POR) circuit that ensures a clean reset during power-on, and a power-down sequence that prevents damage to the device. The power-on and power-off sequences are described in the datasheet and application notes.
