L99LD21Q6TR - STMicroelectronics

Description: High power LED driver for automotive applications

Download L99LD21Q6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

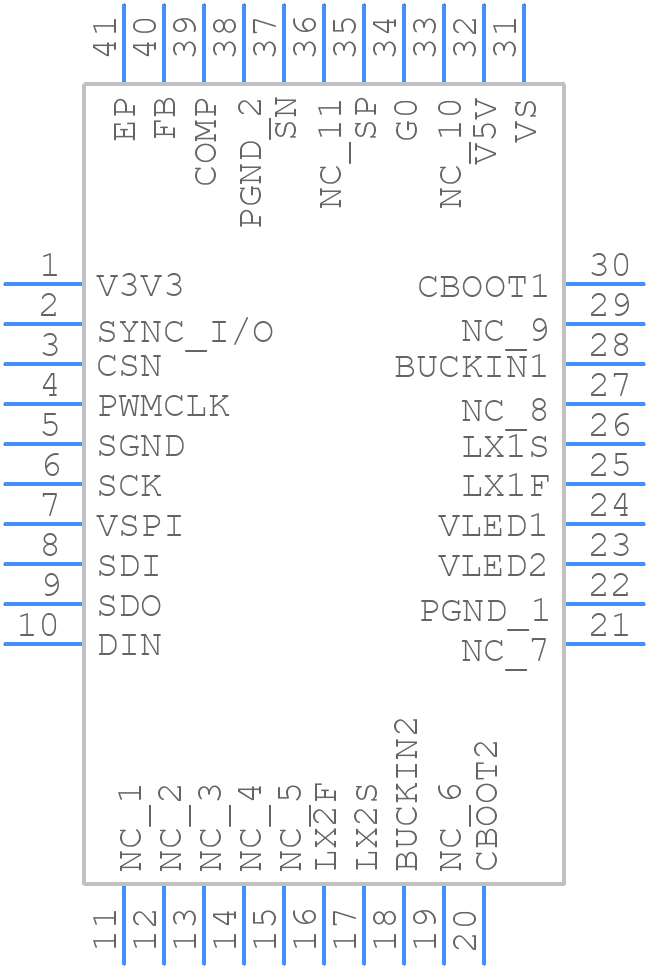

Symbol
L99LD21Q6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99LD21Q6TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40L
click to zoom
3D Models
L99LD21Q6TR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN40L
click to zoom

L99LD21Q6TR Details

  • Manufacturer Part Number:

    L99LD21Q6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    QFN-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.05 mm

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • fmax-Min:

    0.4096 MHz

L99LD21Q6TR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the recommended specifications. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line.
  • The maximum operating temperature range for the L99LD21Q6TR is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time, but this may affect its reliability and lifespan.
  • The POR and BOR features can be handled by connecting the POR pin to a capacitor and a resistor to the VCC pin. The BOR threshold can be set by connecting a resistor and capacitor to the BOR pin. Refer to the datasheet for specific values and configurations.
  • A 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the VCC pin, are recommended for power supply decoupling. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99LD21Q6TR Overview

Use the download button to access the L99LD21Q6TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99LD, or try a keyword search, such as Display Drivers
