L99LDLH32TR - STMicroelectronics

Description: 32 channels LED driver with Automotive CAN FD Light interface

Download L99LDLH32TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

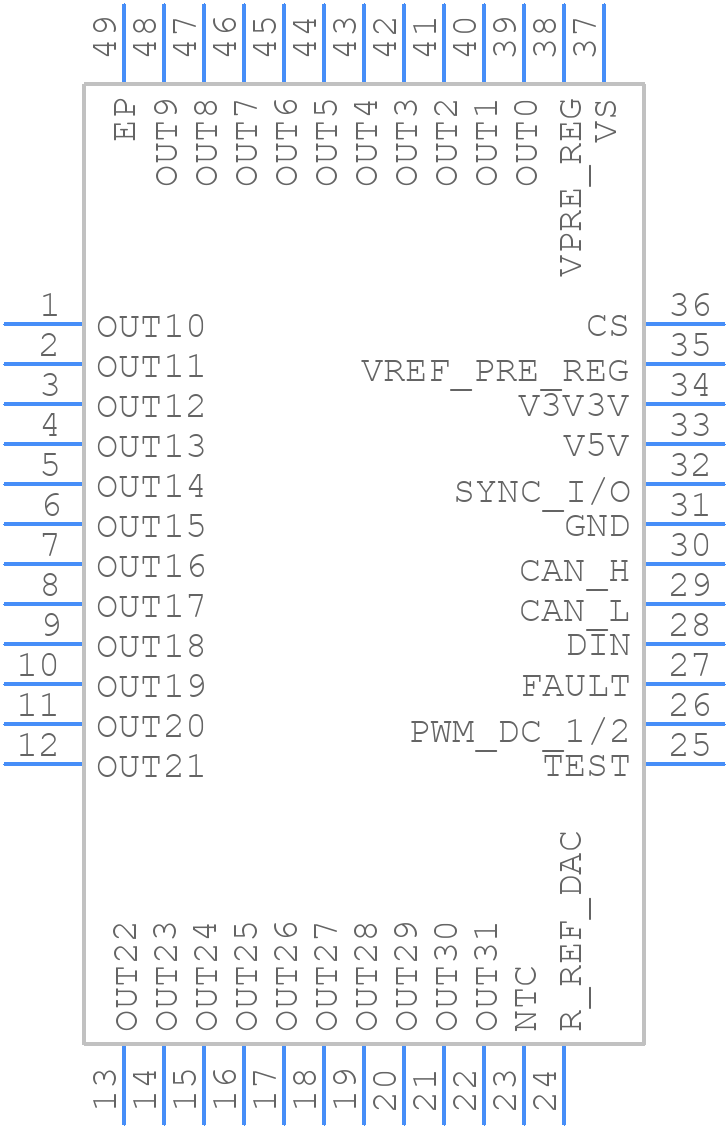

Symbol
L99LDLH32TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99LDLH32TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom
3D Models
L99LDLH32TR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN (7x7x1.0 48L )
click to zoom

L99LDLH32TR Details

  • Manufacturer Part Number:

    L99LDLH32TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

L99LDLH32TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a common mode choke and a CAN transceiver with a high common mode rejection ratio to minimize electromagnetic interference. Ensure proper termination and shielding of the CAN bus cables.
  • The device is rated for operation from -40°C to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation and prevent thermal damage.
  • The device can be configured for low-power mode by setting the EN pin low and disabling the internal voltage regulator. This reduces the quiescent current to approximately 10 μA.
  • A 10 μF to 22 μF ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99LDLH32TR Overview

Use the download button to access the L99LDLH32TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99LD, or try a keyword search, such as Display Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
