L99MC6 - STMicroelectronics

Description: L99MC6 Series 5.25 V 600 mA Configurable 6-Channel Device - PowerSSO-16

Download L99MC6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

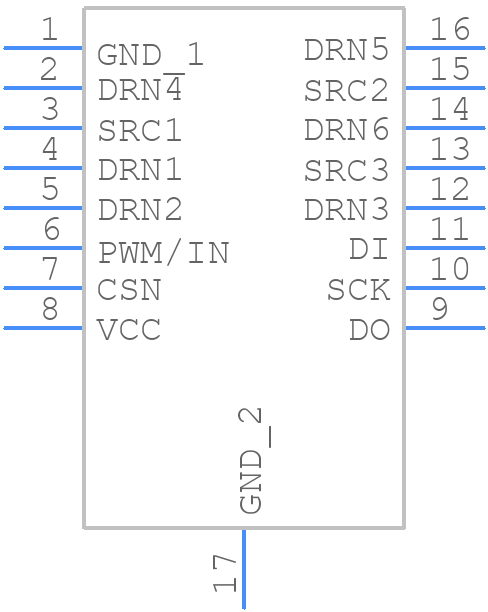

L99MC6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MC6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - sso 16
click to zoom
3D Models
L99MC6 - STMicroelectronics - 3D model - Small Outline Packages - sso 16
click to zoom

L99MC6 Details

  • Manufacturer Part Number:

    L99MC6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; SHORT CIRCUIT

  • Driver Number of Bits:

    6

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    0.6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.72 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max:

    5.3 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    13 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    100 µs

  • Width:

    3.9 mm

L99MC6 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The L99MC6 is a flexible device that can be configured for different motor types, such as BLDC, stepper, and DC motors. The configuration is done through the SPI interface, and the specific settings depend on the motor type and application requirements. Refer to the application note AN4842 for more information.
  • The L99MC6 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • While the L99MC6 is designed to operate with a 5V or 3.3V supply, it's possible to use it with a different voltage supply. However, this requires careful consideration of the device's power consumption, voltage tolerance, and thermal management. Consult with STMicroelectronics' support team or a qualified engineer to ensure a safe and reliable design.
  • Troubleshooting issues with the L99MC6 requires a systematic approach. Start by checking the device's configuration, motor connections, and power supply. Use the device's built-in diagnostic features, such as the fault flags and status registers, to identify the issue. Consult the datasheet, application notes, and STMicroelectronics' support resources for guidance.
