L99MOD50XPTR - STMicroelectronics

Description: Multi-output driver for automotive applications

Download L99MOD50XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

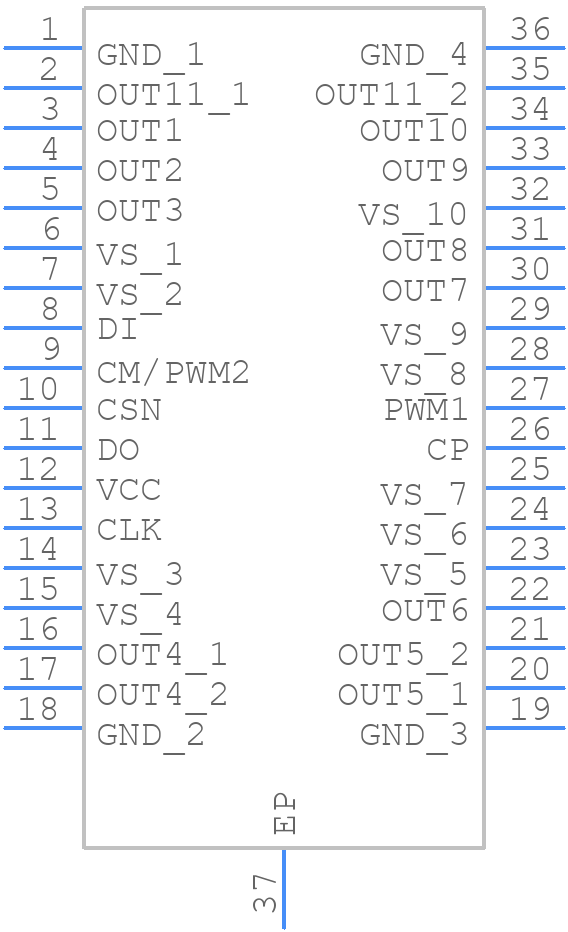

Symbol
L99MOD50XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MOD50XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36---
click to zoom
3D Models
L99MOD50XPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36---
click to zoom

L99MOD50XPTR Details

  • Manufacturer Part Number:

    L99MOD50XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    HSSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

L99MOD50XPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The L99MOD50XPTR is a highly configurable device, and the configuration depends on the specific motor type and application. STMicroelectronics provides a software development kit (SDK) and a graphical user interface (GUI) tool that allows engineers to configure the device and fine-tune its performance for their specific use case.
  • The L99MOD50XPTR has a high power density, and thermal management is crucial to ensure reliable operation. Engineers should consider using a heat sink, thermal interface material, and a well-designed PCB layout to dissipate heat effectively. The device also has built-in thermal protection features that can be configured to prevent overheating.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4842, which covers common issues and their solutions. Engineers can also use the device's built-in diagnostic features, such as fault flags and status registers, to identify and debug issues.
  • The L99MOD50XPTR is designed to meet various safety standards, such as IEC 60730 and IEC 61508. Engineers should ensure that their design meets these standards by following the guidelines in the datasheet and application notes. Additionally, they should consider implementing safety features, such as overcurrent protection and thermal monitoring, to prevent accidents and ensure safe operation.
