L99MOD51XPTR - STMicroelectronics

Description: Multi-output driver for automotive applications

Download L99MOD51XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

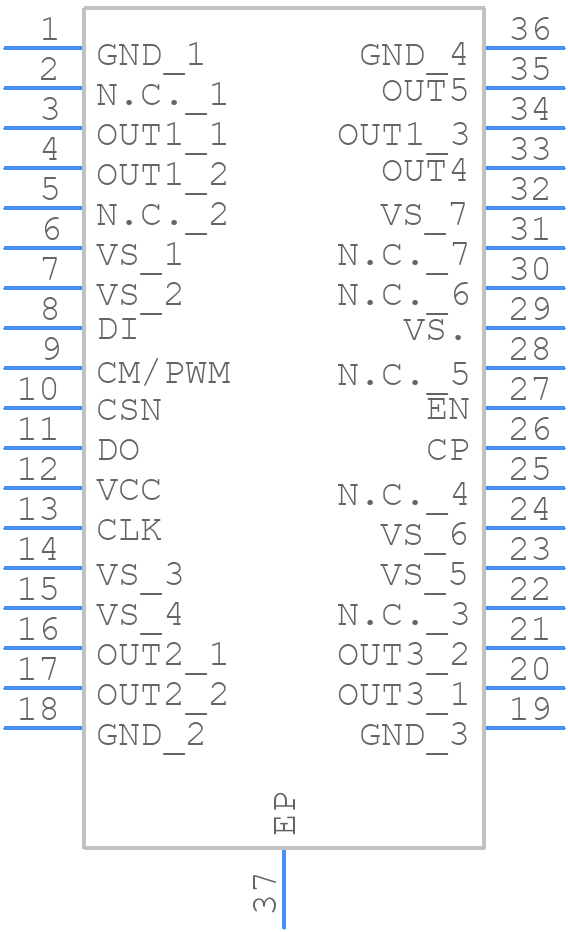

Symbol
L99MOD51XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99MOD51XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO 36_1
click to zoom
3D Models
L99MOD51XPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO 36_1
click to zoom

L99MOD51XPTR Details

  • Manufacturer Part Number:

    L99MOD51XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2019-06-19

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    HSSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

L99MOD51XPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4395, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The L99MOD51XPTR is a highly configurable device, and the configuration for different vehicle protocols is done through the SPI interface. STMicroelectronics provides a software development kit (SDK) and documentation that includes examples and guidelines for configuring the device for various protocols.
  • The L99MOD51XPTR is rated for operation from -40°C to 125°C, making it suitable for use in harsh automotive environments. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to follow the recommended operating conditions and thermal management guidelines.
  • STMicroelectronics provides guidelines for EMC compliance in the application note AN4395, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the L99MOD51XPTR is designed to meet automotive EMC standards, such as IEC 62132 and CISPR 25.
  • The typical power consumption of the L99MOD51XPTR varies depending on the operating mode and configuration. However, STMicroelectronics provides power consumption estimates in the datasheet, and the device includes power-saving features, such as low-power modes and dynamic voltage scaling, to optimize power consumption in low-power applications.
