L99VR01JTR - STMicroelectronics

Description: Automotive low dropout linear voltage regulator with configurable output voltage having 200 mA current capability

Download L99VR01JTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

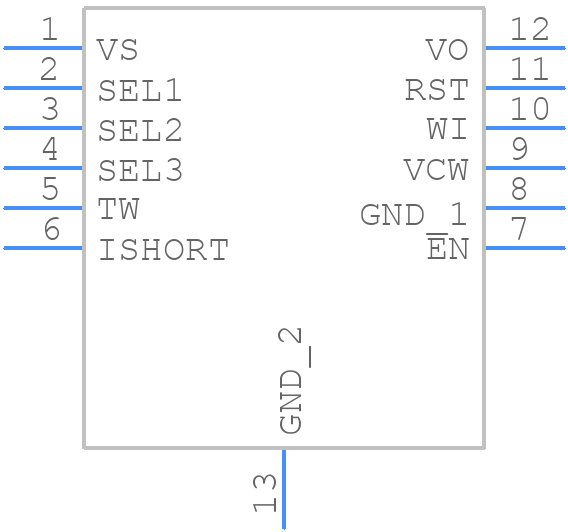

L99VR01JTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99VR01JTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom
3D Models
L99VR01JTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12 height 1.62
click to zoom

L99VR01JTR Details

  • Manufacturer Part Number:

    L99VR01JTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSSO-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    1.35 V

  • Input Voltage Absolute-Max:

    28 V

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.15 V

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.008%

  • Load Regulation-Max:

    0.00816%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    175 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    0.816 V

  • Output Voltage1-Min:

    0.784 V

  • Output Voltage1-Nom:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    SOP12,.24,31

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.62 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

L99VR01JTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L99VR01JTR involves placing the device close to the battery, using a solid ground plane, and keeping the power traces short and wide to minimize voltage drops and noise.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to ensure stable output voltage and minimize voltage drops. A 10uF ceramic capacitor is a good starting point for the input capacitor, and a 22uF ceramic capacitor for the output capacitor.
  • The L99VR01JTR can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and minimize power dissipation.
  • The output voltage of the L99VR01JTR can be adjusted by connecting a resistor divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The L99VR01JTR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal pad on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99VR01JTR Overview

Use the download button to access the L99VR01JTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99VR, or try a keyword search, such as Linear Regulator ICs
