L99VR01STR - STMicroelectronics

Description: Automotive low dropout linear voltage regulator with configurable output voltage having 200 mA current capability

Download L99VR01STR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

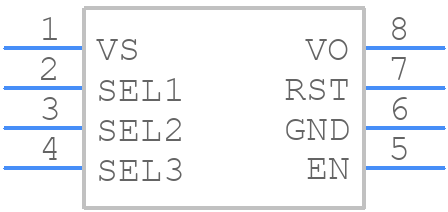

Symbol
L99VR01STR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99VR01STR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC_
click to zoom
3D Models
L99VR01STR - STMicroelectronics - 3D model - Small Outline Packages - 8-Pin SOIC_
click to zoom

L99VR01STR Details

  • Manufacturer Part Number:

    L99VR01STR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    1.35 V

  • Input Voltage Absolute-Max:

    28 V

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.15 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.008%

  • Load Regulation-Max:

    0.00816%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    0.816 V

  • Output Voltage1-Min:

    0.784 V

  • Output Voltage1-Nom:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

L99VR01STR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L99VR01STR involves placing the device close to the battery, using a solid ground plane, and keeping the power traces short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output capacitor should be chosen based on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. X5R or X7R ceramic capacitors are good options.
  • The L99VR01STR can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent overheating.
  • The L99VR01STR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value will trigger the overcurrent protection at a lower current level.
  • The L99VR01STR is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at high temperatures to prevent overheating and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99VR01STR Overview

Use the download button to access the L99VR01STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99VR, or try a keyword search, such as Linear Regulator ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
