LEM recommends a symmetrical PCB layout with a ground plane underneath the device to minimize electromagnetic interference. A minimum of 2mm clearance around the device is also recommended.
To ensure accurate current measurement, it's essential to follow the recommended PCB layout, use a low-impedance current path, and minimize the distance between the current conductor and the LA100-TP. Additionally, calibrate the device according to the datasheet instructions.
The LA100-TP can operate within a temperature range of -40°C to 125°C. However, the accuracy and linearity of the device may be affected at extreme temperatures. Consult the datasheet for detailed specifications.
The LA100-TP is designed for DC and low-frequency AC current measurement. While it can measure currents up to 100 kHz, its accuracy and bandwidth may be limited at higher frequencies. For high-frequency current measurement, consider using a specialized high-frequency current sensor.
To protect the LA100-TP, use external overcurrent protection devices such as fuses or current limiters. Additionally, ensure that the device is operated within its specified voltage range (±15V) and follow proper PCB design practices to prevent overvoltage conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA100-TP Overview

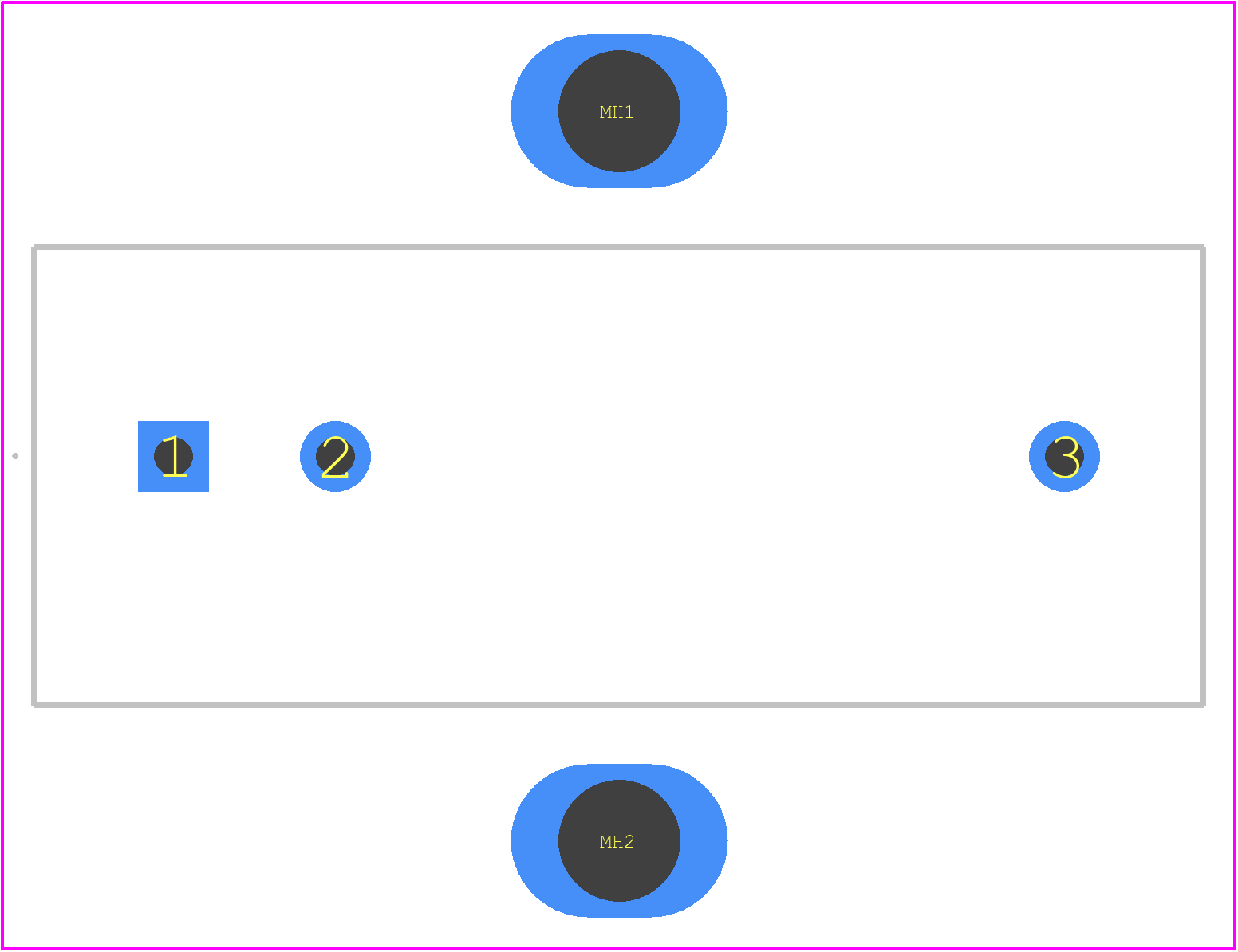

Use the download button to access the LA100-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA100,
or try a keyword search, such as Other Sensors/Transducers
