LA200-P/SP4 Frequently Asked Questions (FAQs)

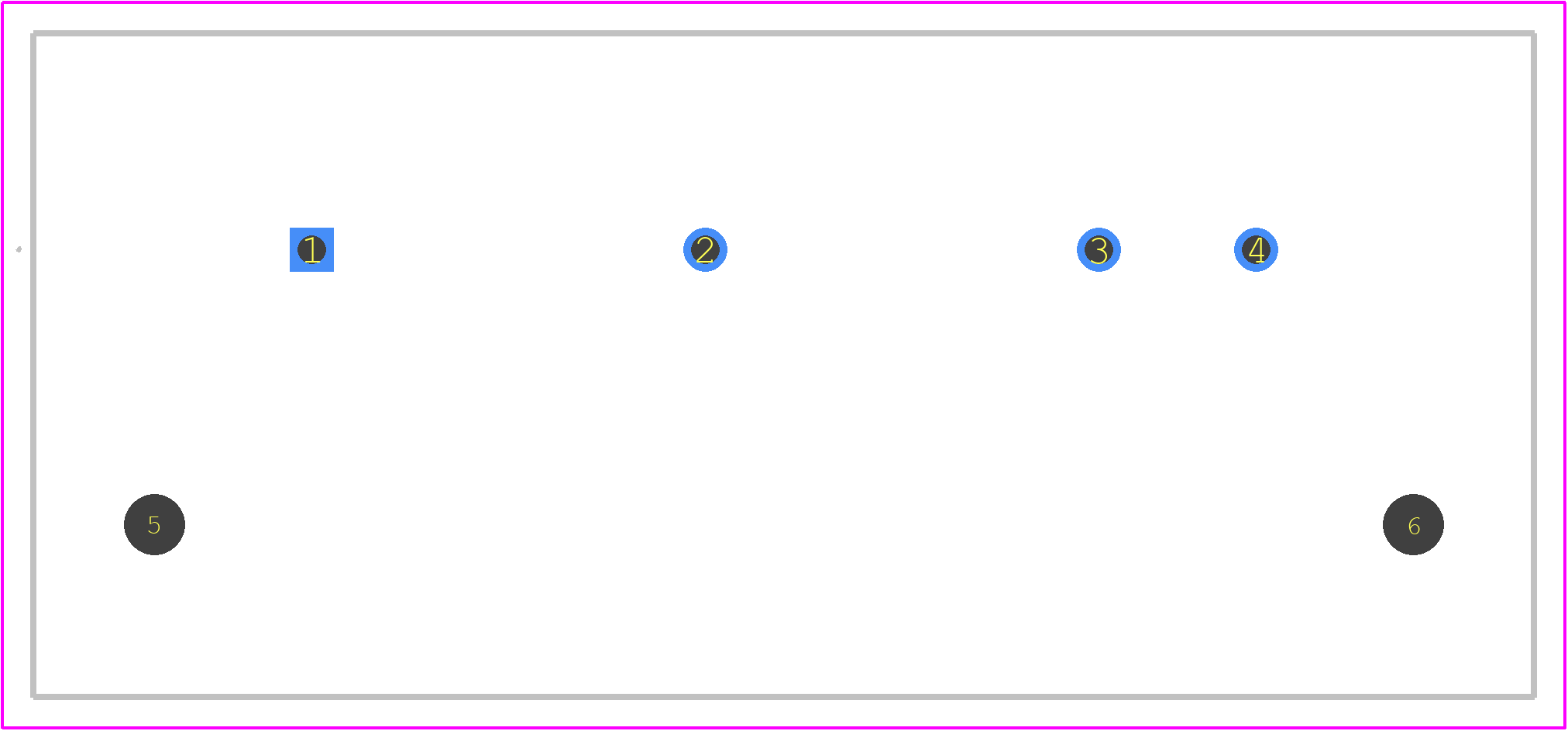

• What is the recommended PCB layout for optimal performance of the LA200-P/SP4?
  The recommended PCB layout for optimal performance of the LA200-P/SP4 involves keeping the high-frequency current paths as short as possible, using a solid ground plane, and placing the device close to the current-carrying conductors. Additionally, it is recommended to use a low-impedance path for the Rogowski coil connections and to minimize the loop area of the current-carrying conductors.
• How does the LA200-P/SP4 handle overcurrent conditions?
  The LA200-P/SP4 has an internal overcurrent detection circuit that triggers an alarm output when the measured current exceeds a certain threshold. The device also has a built-in protection mechanism that limits the output voltage to prevent damage to the device and connected equipment in case of an overcurrent condition.
• What is the typical response time of the LA200-P/SP4 to changes in the input current?
  The typical response time of the LA200-P/SP4 to changes in the input current is around 1-2 microseconds, making it suitable for high-speed current measurement applications.
• Can the LA200-P/SP4 be used in high-temperature environments?
  The LA200-P/SP4 is rated for operation up to 85°C, but it can be used in high-temperature environments with some derating. It is recommended to consult the datasheet and application notes for specific guidance on using the device in high-temperature applications.
• How does the LA200-P/SP4 handle electromagnetic interference (EMI)?
  The LA200-P/SP4 has a shielded design and is built with EMI-resistant components to minimize the effects of electromagnetic interference. Additionally, the device has a high common-mode rejection ratio (CMRR) to reject common-mode noise and interference.
