LA25-NP/SP14 - LEM

Description: Current Sensor 5A, 6A, 8A, 12A, 25A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional Module

Download LA25-NP/SP14 Model

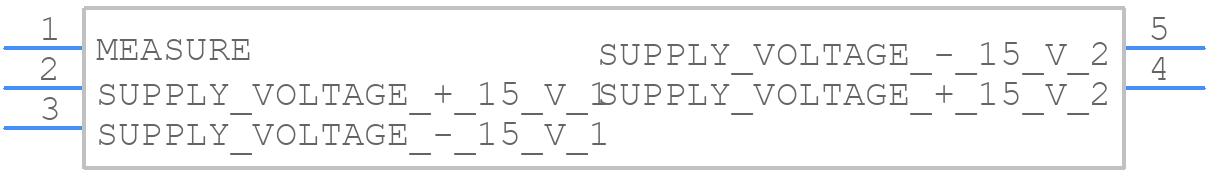

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

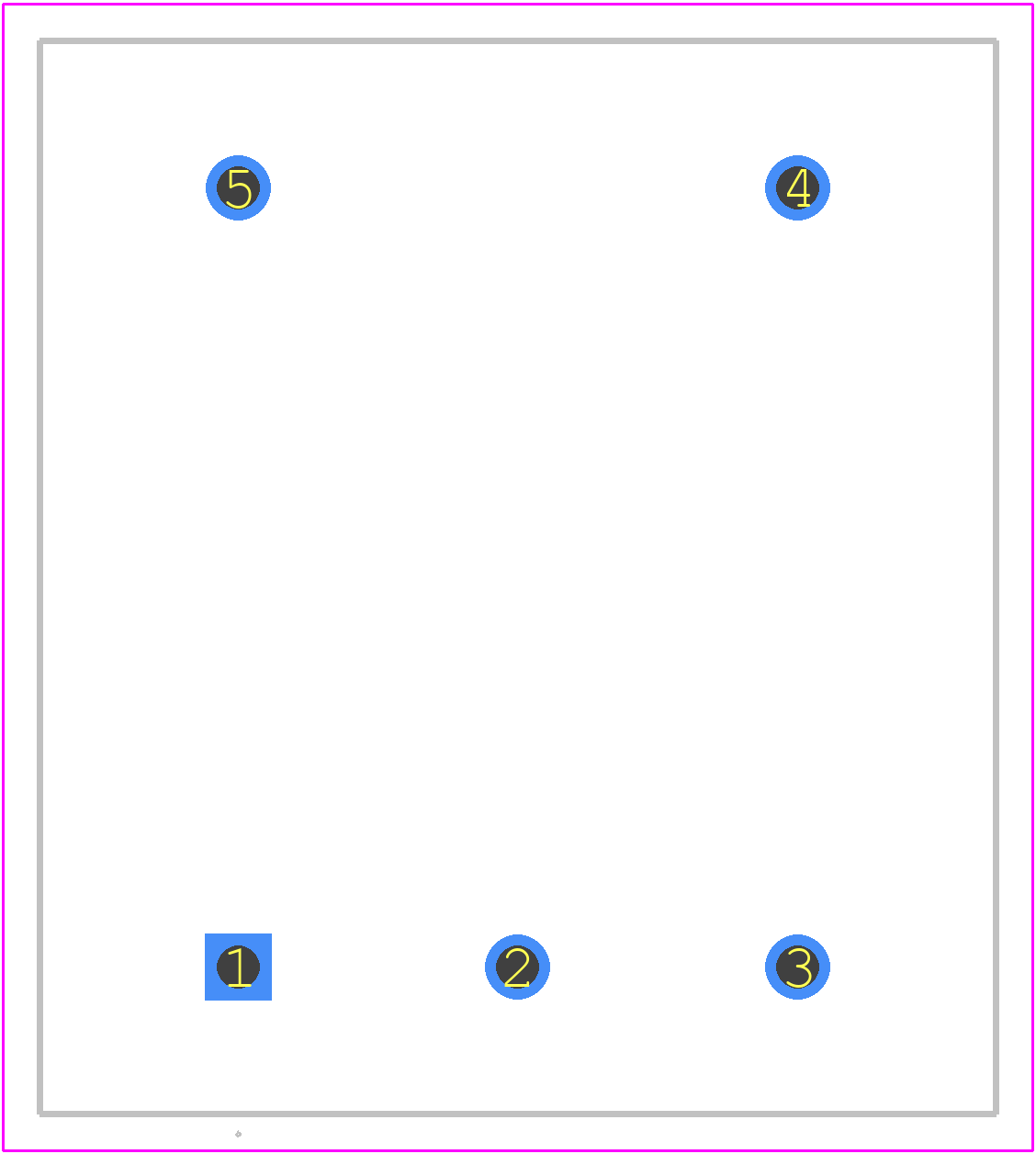

LA25-NP/SP14 - LEM PCB footprint - Other - Other - LA25-NP/SP14-1
click to zoom
3D Models
LA25-NP/SP14 - LEM  - 3D model - Other - LA25-NP/SP14-1
click to zoom

LA25-NP/SP14 Details

  • Manufacturer Part Number:

    LA25-NP/SP14

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Manufacturer:

    LEM Holdings SSA

  • Body Breadth:

    26 mm

  • Body Height:

    15.2 mm

  • Body Length or Diameter:

    29.2 mm

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    15.75 V

  • Supply Voltage-Min:

    14.25 V

LA25-NP/SP14 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB layout with a dedicated ground plane, and ensure a minimum of 1 oz copper thickness. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a large copper area to dissipate heat efficiently.
  • The LA25-NP/SP14 has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. The OCP limits the output current to a safe value, while the OVP disconnects the output when the input voltage exceeds the maximum rating. However, it's still recommended to add external protection circuits for added reliability.
  • The typical settling time for the LA25-NP/SP14 is around 100-200 μs after a load change or input voltage change. This is dependent on the output capacitance, input voltage, and load characteristics.
  • The LA25-NP/SP14 can operate up to 105°C ambient temperature, but the output power should be derated by 2.5% per °C above 70°C. It's essential to ensure proper heat sinking and airflow to maintain reliable operation.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10-22 μF is recommended for input decoupling. This helps to filter out high-frequency noise and ensure stable operation.
