LA25-NP - LEM

LA25-NP Frequently Asked Questions (FAQs)

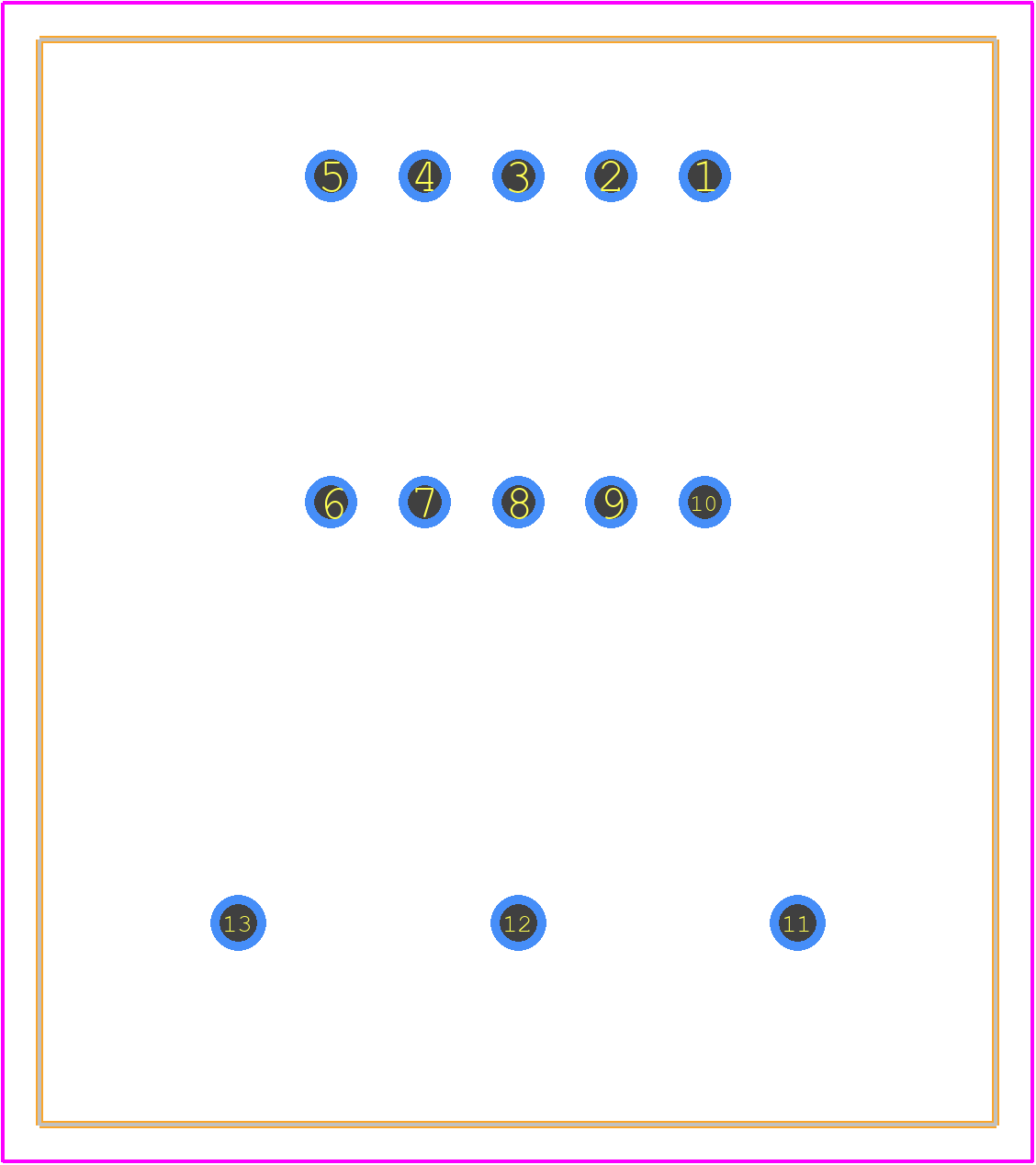

• What is the recommended PCB layout for optimal performance of the LA25-NP?
  A symmetrical layout with a central grounding point and a star-configuration for the current paths is recommended to minimize noise and ensure accurate measurements.
• How does the LA25-NP handle overcurrent conditions?
  The LA25-NP has an internal overcurrent protection circuit that limits the output current to prevent damage to the device. However, it's still important to add external protection measures to prevent damage from excessive currents.
• What is the recommended calibration procedure for the LA25-NP?
  The LA25-NP requires a one-time calibration procedure using a known current source and a high-precision multimeter. The calibration procedure is outlined in the application note provided by LEM Holdings SSA.
• Can the LA25-NP be used in high-temperature environments?
  The LA25-NP is rated for operation up to 125°C, but its accuracy and stability may be affected at high temperatures. It's recommended to derate the device's specifications according to the temperature derating curve provided in the datasheet.
• How does the LA25-NP handle electromagnetic interference (EMI)?
  The LA25-NP has internal EMI filtering, but it's still important to follow proper PCB layout and shielding practices to minimize the effects of external EMI sources.
