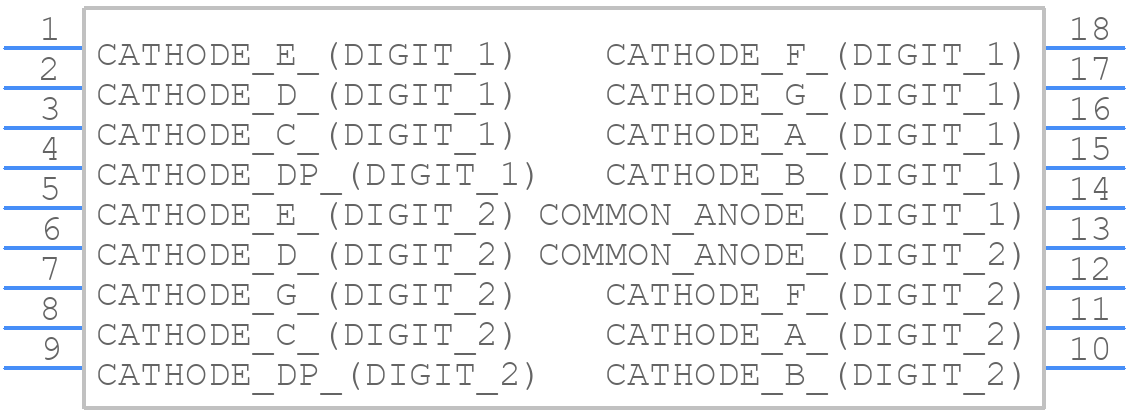

Symbol

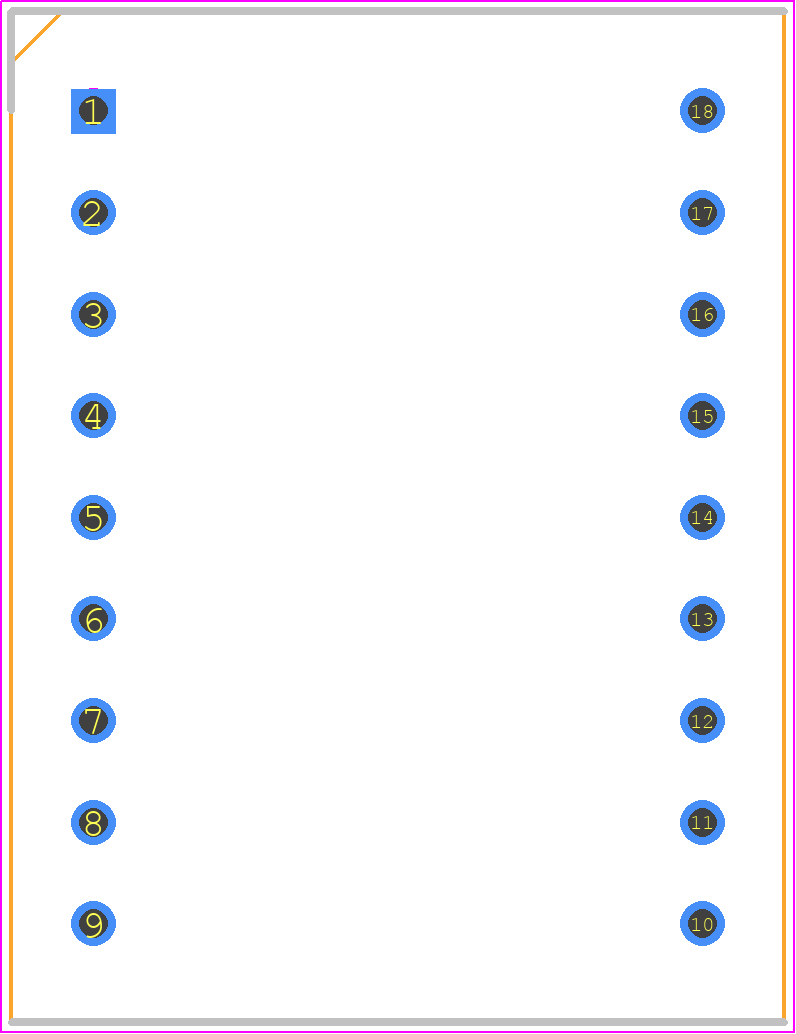

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LA5672-11-M1
- Part Number LA5672-11-M1
- Manufacturer Ledtech
- Pin Count 18
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LA5672-11-M1
- Released Date Mar 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LA5672-11-M1 Details
-
Manufacturer Part Number:
LA5672-11-M1
-
Manufacturer:
Ledtech Electronics
Trust Checks
Community Provided
System Verified
Community Approved
LA5672-11-M1 Overview
Use the download button to access the LA5672-11-M1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LA567,
or try a keyword search, such as Switching Regulator or Controllers
