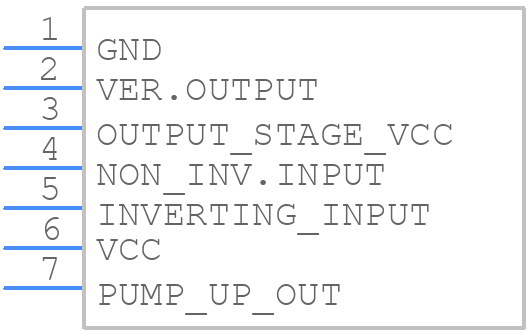

LA7840 - Sanyo

LA7840 Details

• Manufacturer Part Number:

  LA7840

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  SFM

• Package Description:

  SIP-7

• Pin Count:

  7

• HTS Code:

  8542.39.00.60

• Manufacturer:

  SANYO Semiconductor Co Ltd

• Application:

  TV; MONITOR

• Blanking Output:

  NO

• Consumer IC Type:

  VERTICAL DEFLECTION IC

• JESD-30 Code:

  R-PSFM-T7

• Length:

  18 mm

• Number of Functions:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SFM

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  15 mm

• Supply Voltage-Max (Vsup):

  33 V

• Supply Voltage-Min (Vsup):

  16 V

• Surface Mount:

  NO

• Temperature Grade:

  OTHER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Width:

  3 mm
