LAA110 - LITTELFUSE

Description: Relay SSR 50mA 1.4V DC-IN 0.12A 350V Automotive 8-Pin PDIP Tube

Download LAA110 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

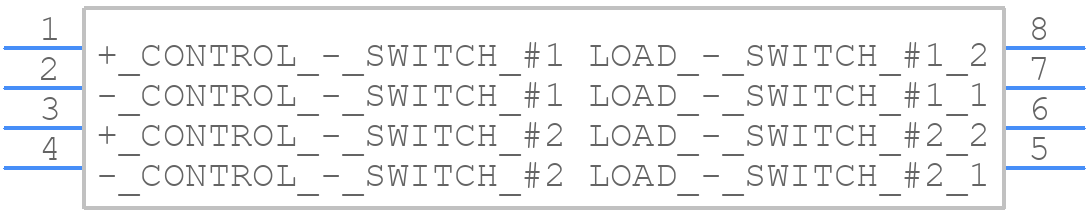

Symbol
LAA110 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LAA110 - LITTELFUSE PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PI (8-Pin DIP)
click to zoom
3D Models
LAA110 - LITTELFUSE - 3D model - Dual-In-Line Packages - PI (8-Pin DIP)
click to zoom

LAA110 Details

  • Manufacturer Part Number:

    LAA110

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.59

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.12 A

  • On-state Resistance-Max:

    35 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    9.652 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

LAA110 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LAA110 should ensure that the input and output pins are separated as much as possible to minimize electromagnetic interference (EMI). Additionally, the PCB should have a solid ground plane and use short, direct traces to connect the device to the power supply and load.
  • To select the correct fuse rating, consider the maximum current rating of the LAA110 (10A) and the maximum current required by your load. Choose a fuse with a rating that is slightly higher than the maximum current required by your load to ensure reliable operation.
  • The LAA110 can operate over a temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including automotive and industrial systems.
  • Yes, the LAA110 is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial systems.
  • The LAA110 has built-in overvoltage protection (OVP) that can detect and respond to overvoltage conditions. When an overvoltage condition is detected, the device will shut down to protect the load and itself from damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAA110 Overview

Use the download button to access the LAA110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAA11, or try a keyword search, such as Solid State Relays
