The recommended PCB layout for the LAA110S involves keeping the leads as short as possible, using a ground plane under the device, and minimizing the distance between the device and the fuse. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
To ensure proper soldering of the LAA110S, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the leads. Avoid applying excessive force or pressure, which can damage the device. Also, make sure the PCB is clean and free of oxidation before soldering.
The maximum operating temperature range for the LAA110S is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the LAA110S is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure the device is securely fastened to the PCB and the PCB is properly secured to the system.
To troubleshoot issues with the LAA110S, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify that the input and output connections are correct and secure. If the issue persists, check for signs of overheating, such as discoloration or deformation of the device. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LAA110S Overview

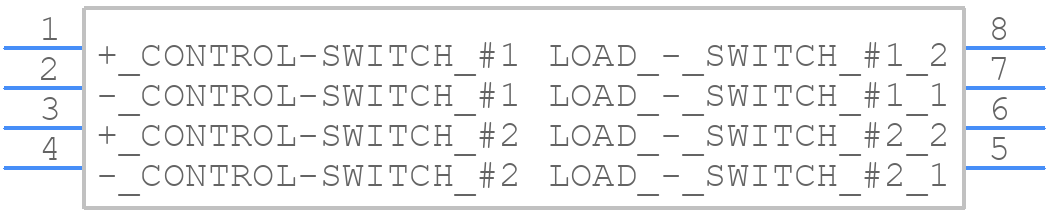

Use the download button to access the LAA110S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAA11,
or try a keyword search, such as Solid State Relays
