LAH100-P - LEM

Description: Closed Loop Current Sensor, 100A nominal current, 50mArms output current

Download LAH100-P Model

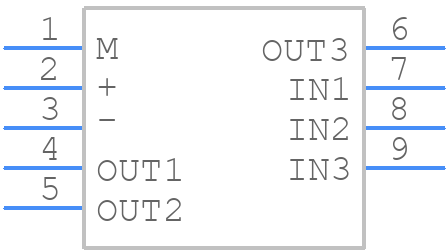

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

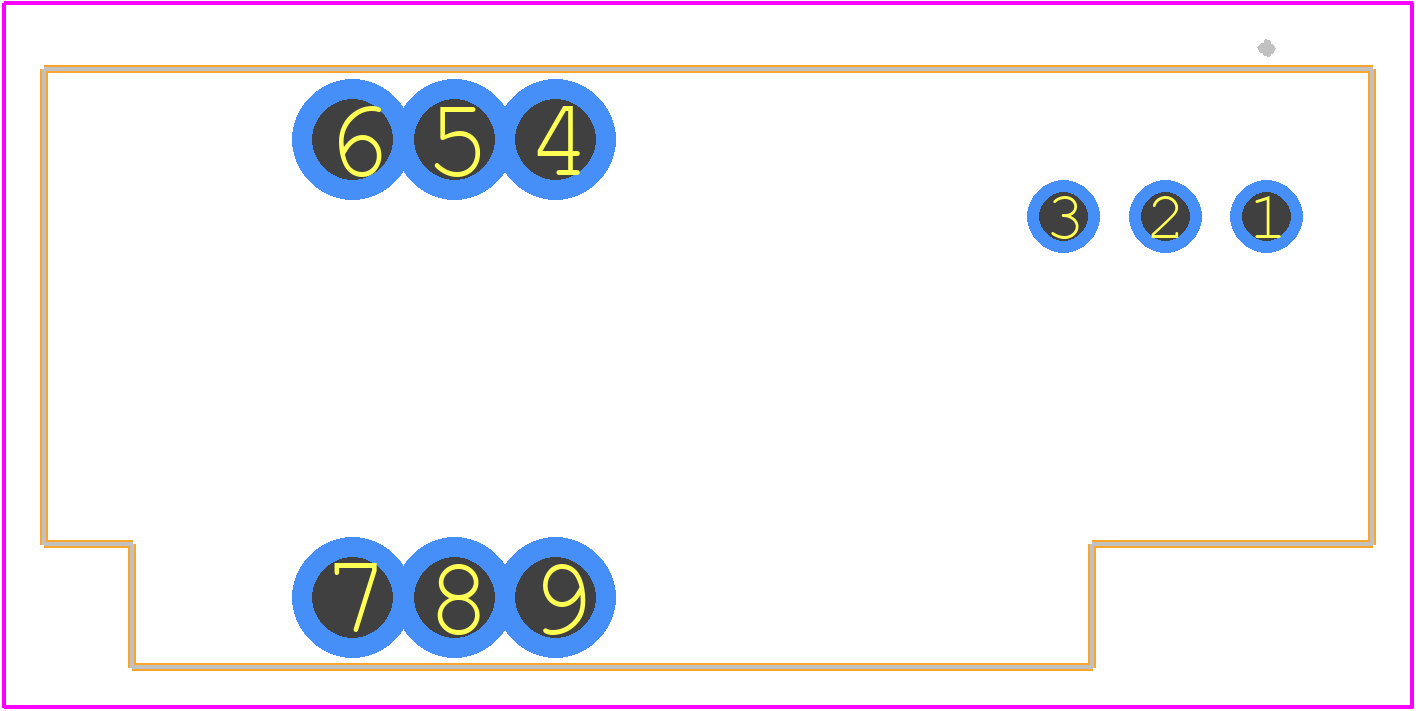

LAH100-P - LEM PCB footprint - Other - Other - LAH 100-P-2
click to zoom
3D Models
LAH100-P - LEM  - 3D model - Other - LAH 100-P-2
click to zoom

LAH100-P Details

  • Manufacturer Part Number:

    LAH100-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Bulgaria

  • Manufacturer:

    LEM Holdings SSA

  • Body Breadth:

    14.93 mm

  • Body Height:

    21.5 mm

  • Body Length or Diameter:

    33.2 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Type:

    CURRENT OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Resistance:

    45 Ω

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    12.6 V

  • Supply Voltage-Min:

    11.4 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
