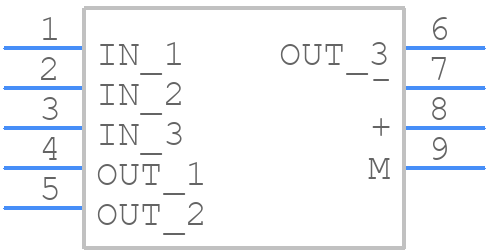

Symbol

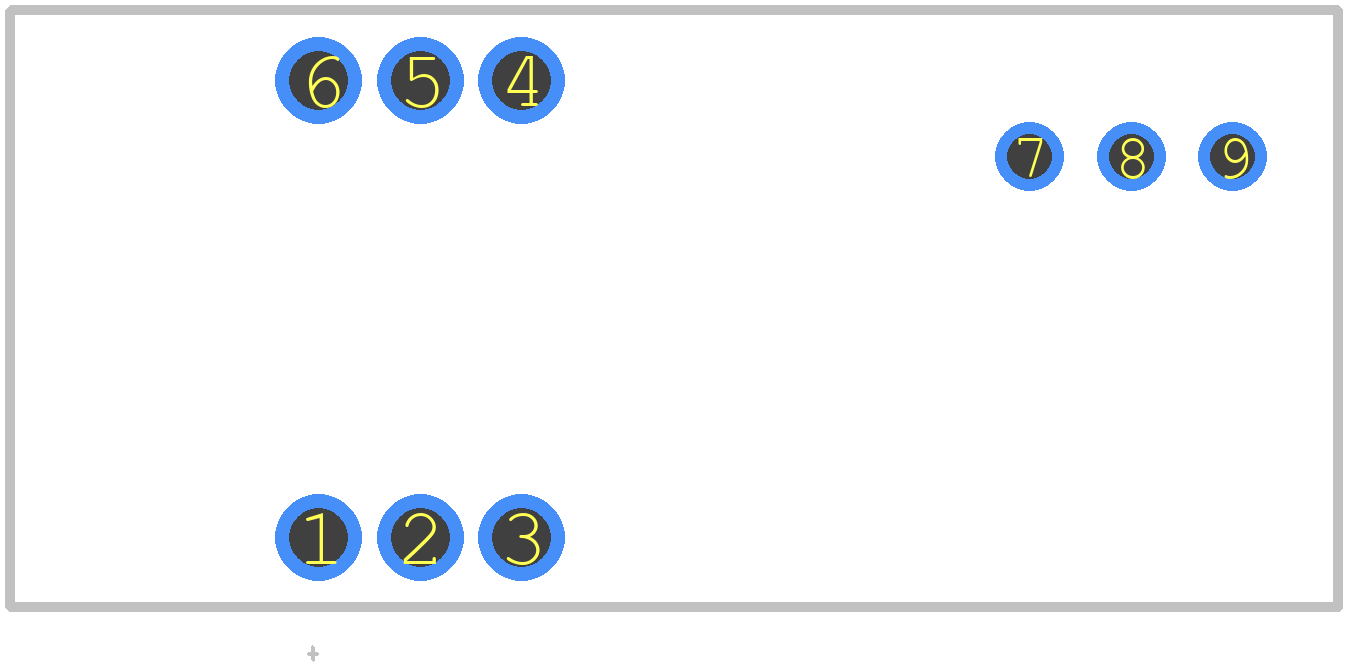

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LAH25-NP
- Part Number LAH25-NP
- Manufacturer LEM
- Pin Count 9
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - LAH-25-NP
- Released Date Jan 15, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LAH25-NP Details
-
Manufacturer Part Number:
LAH25-NP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
LEM Holdings SSA
-
YTEOL:
6
-
Sensors/Transducers Type:
CURRENT SENSOR
LAH25-NP Frequently Asked Questions (FAQs)
-
A symmetrical layout with a central ground plane and minimal track lengths is recommended to minimize noise and ensure accurate measurements.
-
Calibration involves applying a known current to the sensor and adjusting the output voltage to match the expected value. Refer to the application note for detailed calibration procedures.
-
The LAH25-NP is rated for operation between -40°C to 125°C, but derating may be necessary for high-temperature applications.
-
Yes, the LAH25-NP is designed to withstand vibrations up to 10g, but additional mechanical fixation may be necessary for extreme vibration environments.
-
Use a shielded cable, keep the sensor away from high-frequency sources, and ensure proper grounding to minimize electromagnetic interference.
Trust Checks
Expert Contribution
System Verified
Community Approved
LAH25-NP Overview
Use the download button to access the LAH25-NP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LAH25,
or try a keyword search, such as Other Sensors/Transducers
