LAN8710A-EZC-ABC - Microchip

Description: IC TRANSCEIVER FULL 4/4 32SQFN

Download LAN8710A-EZC-ABC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

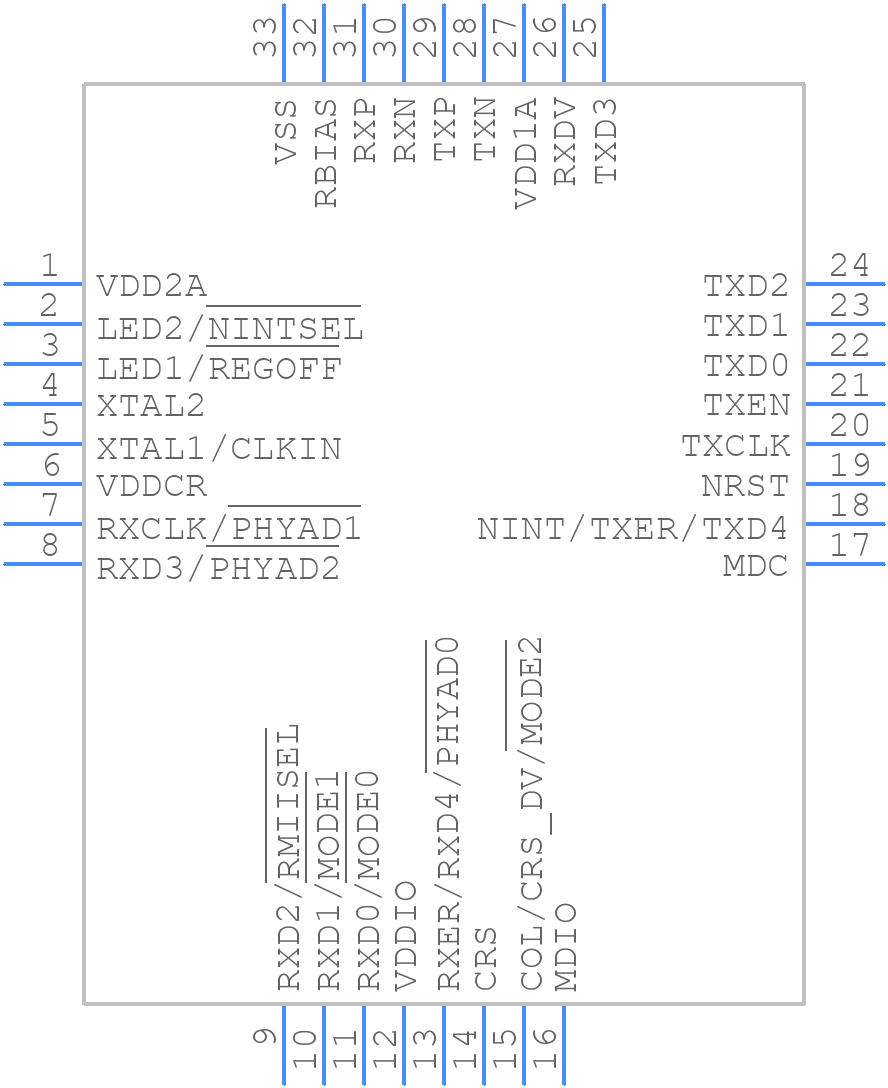

LAN8710A-EZC-ABC - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8710A-EZC-ABC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-SQFN_2022
click to zoom
3D Models
LAN8710A-EZC-ABC - Microchip - 3D model - Quad Flat No-Lead - 32-SQFN_2022
click to zoom

LAN8710A-EZC-ABC Details

  • Manufacturer Part Number:

    LAN8710A-EZC-ABC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    QFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2016-06-24

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LAN8710A-EZC-ABC Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the LAN8710A-EZC-ABC evaluation board design files, which can be downloaded from the Microchip website. It's essential to follow this layout to ensure proper operation and minimize electromagnetic interference (EMI).
  • The LAN8710A-EZC-ABC can be configured for different PHY modes using the strap pins or through the Serial Management Interface (SMI). The specific configuration depends on the desired PHY mode and can be found in the LAN8710A-EZC-ABC datasheet and application notes.
  • The LAN8710A-EZC-ABC supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and cable quality.
  • Microchip provides a troubleshooting guide in the LAN8710A-EZC-ABC datasheet and application notes. Additionally, engineers can use tools like oscilloscopes and logic analyzers to debug issues with the PHY and MAC layers.
  • Yes, the LAN8710A-EZC-ABC is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8710A-EZC-ABC Overview

Use the download button to access the LAN8710A-EZC-ABC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
