LAN8710A-EZC - Microchip

Description: Ethernet ICs 10/100 Ethernet XCVR HP AutoMDIX FlexPwr

Download LAN8710A-EZC Model
Schematic
symbols

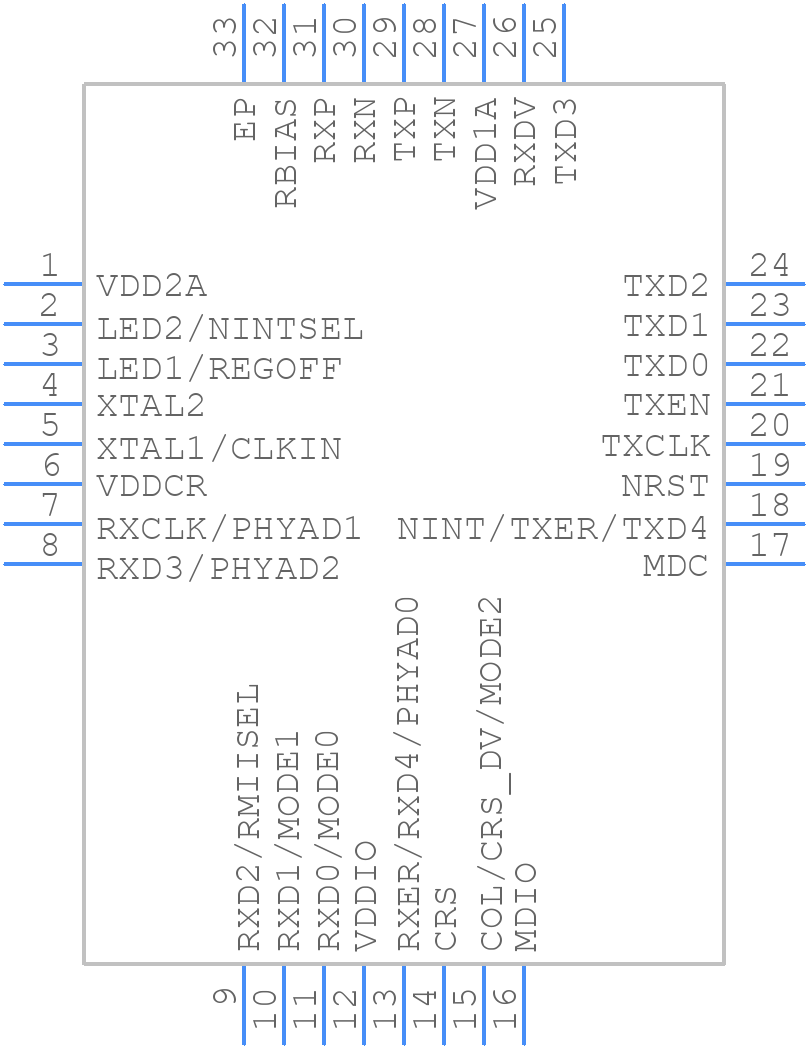

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LAN8710A-EZC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 32
click to zoom
3D Models
LAN8710A-EZC - Microchip  - 3D model - Quad Flat No-Lead - QFN 32
click to zoom

LAN8710A-EZC Details

  • Manufacturer Part Number:

    LAN8710A-EZC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN,

  • Pin Count:

    32

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:
