LAN8720A-CP-ABC - Microchip

Description: Ethernet ICs Small Footprint RMII RMII 10/100 Ethernet

Download LAN8720A-CP-ABC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

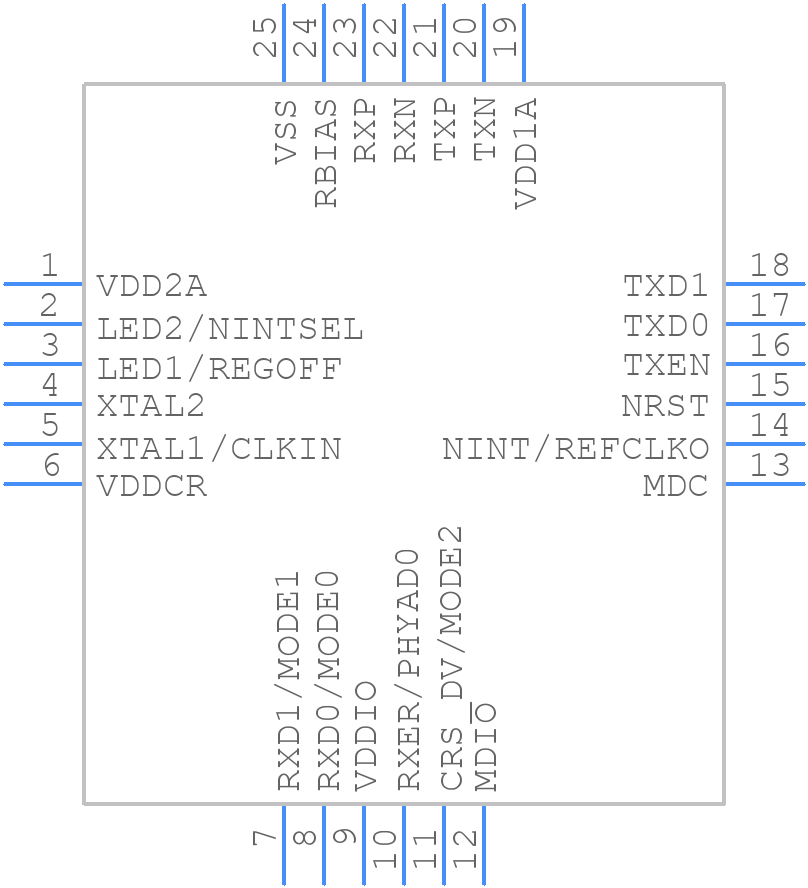

LAN8720A-CP-ABC - Microchip - PCB symbol
click to zoom
PCB Footprints
LAN8720A-CP-ABC - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin SQFN
click to zoom
3D Models
LAN8720A-CP-ABC - Microchip - 3D model - Quad Flat No-Lead - 24-Pin SQFN
click to zoom

LAN8720A-CP-ABC Details

  • Manufacturer Part Number:

    LAN8720A-CP-ABC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    QFN-24

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    54 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LAN8720A-CP-ABC Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in the LAN8720A-CP-ABC evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The LAN8720A-CP-ABC can be configured for different PHY modes (e.g., 10BASE-T, 100BASE-TX, 1000BASE-T) using the device's strap pins or through software configuration using the MDIO interface.
  • The LAN8720A-CP-ABC supports cable lengths up to 100 meters for 1000BASE-T and 100BASE-TX modes, and up to 200 meters for 10BASE-T mode, assuming a Category 5e or higher cable.
  • The LAN8720A-CP-ABC has a built-in power management feature that can be controlled through the PMDIO interface. Additionally, the device can be powered down or put into a low-power state using the PWON pin.
  • The LAN8720A-CP-ABC has a maximum junction temperature of 125°C. Thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAN8720A-CP-ABC Overview

Use the download button to access the LAN8720A-CP-ABC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAN87, or try a keyword search, such as Network Interfaces
